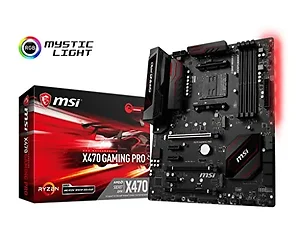

MSI X470 GAMING PRO Desktop Motherboard AMD Chipset Socket AM4 ATX 1 x Processor Support 64 GB DDR4 SDRAM Maximum RAM

Name: MSI X470 GAMING PRO Desktop Motherboard AMD Chipset Socket AM4 ATX 1 x Processor Support 64 GB DDR4 SDRAM Maximum RAM 1.87 GHz, 2.13 GHz, 2.40 GHz,
Brand: Msi
SKU: AZTEKMFHB5
Price: 198.48 USD
Availability: OutOfStock

SKU: AZTEKMFHB5 | Mfg. Part: X470 GAMING PRO | UPC: 824142161586 | 0 Reviews | Share

Msi X470 GAMING PRO - Desktop Motherboard - AMD Chipset - Socket AM4 - ATX - 1 x Processor Support - 64 GB DDR4 SDRAM Maximum RAM - 1.87 GHz, 2.13 GHz, 2.40 GHz, 2.67 GHz O.C., 2.80 GHz O.C., 2...

Special Order
Ships in 1-2 weeks
Condition: New

$198.48 ~~$267.95~~

AUTHORIZED

Need 10+? Request a volume quote

Free Shipping for this Item

Product Overview

MSI X470 GAMING PRO Desktop Motherboard AMD Chipset Socket AM4 ATX 1 x Processor Support 64 GB DDR4 SDRAM Maximum RAM

Technical Specifications

Main Specifications

Product Description	MSI X470 GAMING PRO - motherboard - ATX - Socket AM4 - AMD X470
Product Type	Motherboard - ATX
Chipset Type	AMD X470
Processor Socket	1 x Socket AM4
Compatible Processors	Athlon, A series, Ryzen
Max RAM Size	64 GB
RAM Supported	4 DIMM slots - DDR4 unbuffered
Storage Ports	6 x SATA-600 (RAID), 2 x M.2
USB / FireWire Ports	USB 3.1 Gen 1, USB 3.1 Gen 2 2 x USB 3.1 Gen 2 + 4 x USB 3.1 Gen 1 + 2 x USB 2.0 + (4 x USB 3.1 Gen 1 + 4 x USB 2.0 via headers)
Max Allocated RAM Size	2048 MB
Audio	HD Audio (8-channel)
LAN	Gigabit Ethernet

Extended Specifications

General

Product Type	Motherboard - ATX
Chipset Type	AMD X470
Processor Socket	Socket AM4
Max Processors Qty	1
Compatible Processors	Athlon, A series, Ryzen

Supported RAM

Max Size	64 GB
Technology	DDR4
Bus Clock	2400 MHz, 1866 MHz, 2133 MHz, 2667 MHz, 2800 MHz (O.C.), 2933 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3466 MHz (O.C.), 3066 MHz (O.C.)
Registered or Buffered	Unbuffered
Features	Dual channel memory architecture, supported ECC modules operate in non-ECC mode

Graphics

Max Allocated RAM Size

2048 MB

Audio

Type	HD Audio (8-channel)
Audio Codec	Realtek ALC892
Compliant Standards	High Definition Audio

LAN

Network Controller	Realtek RTL8111H
Network Interfaces	Gigabit Ethernet

Expansion / Connectivity

Expansion Slots	1 x CPU ? 4 x DIMM 288-pin ? 2 x PCIe 3.0 x16 (x16/x0, x8/x8 mode (with AMD Ryzen CPU); x8/x0 mode (with AMD Ryzen with Radeon Vega Graphics and A-Series/Athlon)) ? 3 x PCIe 2.0 x1 ? 1 x PCIe 2.0 x16 (x4 mode)
Storage Interfaces	SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ? SATA-600 / PCIe -connectors: 1 x M.2 ? PCIe 3.0 -connectors: 1 x M.2
Interfaces	1 x LAN (Gigabit Ethernet) ? 4 x USB 3.1 Gen 1 ? 1 x PS/2 keyboard / mouse ? 1 x audio line-in - mini-jack ? 1 x audio line-out - mini-jack ? 1 x microphone - mini-jack ? 1 x TOSLINK ? 2 x USB 2.0 ? 2 x USB 3.1 Gen 2 ? 1 x HDMI ? 1 x audio line-out (center/subwoofer) - mini-jack ? 1 x audio line-out (rear) - mini-jack ? 1 x DVI-D
Internal Interfaces	4 x USB 2.0 - header ? 4 x USB 3.1 Gen 1 - header ? 1 x audio - header ? 1 x serial - header ? 1 x parallel - header
Power Connectors	4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Features	MSI ClickBIOS 5
Hardware Features	AMD CrossFireX technology support, AMD 3-way CrossFireX technology support, MSI Audio Boost, Clear CMOS Button, MSI Gaming Device Port, Debug LED, Turbo M.2, MSI Mystic Light, MSI Steel Armor, Game Boost, LAN Protect, 11 Phase Power Design, Nahimic 3 Sound Technology, MSI Core Boost

Miscellaneous

Included Accessories	I/O back plate
Cables Included	2 x Serial ATA cable
Software Included	Drivers & utilities, MSI Live Update, MSI Command Center, RAMdisk, MSI Gaming Hotkey, MSI X-BOOST
Width	12 in
Depth	9.6 in
