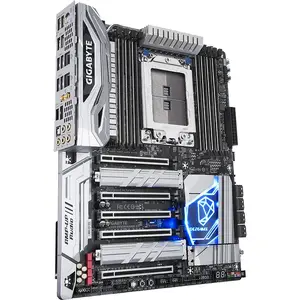

X399 DESIGNARE EX - Gigabyte Motherboard X399 Designare EX AMD Ryzen X399 128GB DDR4 PCI Express SATA USB ATX Retail

CPU
SocketTR4: 1.AMD Ryzen Threadripper processor Chipset
1.AMD X399 Memory
1.8 x DDR4 DIMM sockets supporting up to 128 GB of system memory
2.Quad channel memory architecture
3.Support for DDR4 3600+(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 2933(O.C.)/ 2667/ 2400/ 2133 MHz memory modules
4.Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
5.Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6.Support for Extreme Memory Profile (XMP) memory modules Audio
1.Realtek ALC1220 codec
2.Support for Sound BlasterX 720
3.High Definition Audio
4.2/4/5.1/7.1-channel
5.Support for S/PDIF Out LAN
1.2 x Intel GbE LAN chips (10/100/1000 Mbit) Wireless Communication module
1.Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
2.BLUETOOTH 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDR
3.Support for 11ac wireless standard and up to 867 Mbps data rate Expansion Slots
1.2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
2.2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2) (The PCIEX16 and PCIEX8 slots conform to PCI Express 3.0 standard.)
3.1 x PCI Express x16 slot, running at x4 (PCIEX4) (The PCIEX4 slot conforms to PCI Express 2.0 standard.) Storage Interface
1.2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_32G)(M2Q_32G)
2.1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_32G)
3.8 x SATA 6Gb/s connectors
4.Support for RAID 0, RAID 1, and RAID 10 Multi-Graphics Technology
1.Support for AMD Quad-GPU CrossFire and 4-Way/3-Way/2-Way AMD CrossFire technologies
2.Support for NVIDIA Quad-GPU SLI and 4-Way/3-Way/2-Way NVIDIA SLI technologies USB
CPU: 1.8 x USB 3.1 Gen 1 ports on the back panel
Chipset: 1.1 x USB Type-C port on the back panel, with USB 3.1 Gen 2 support
2.1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
3.1 x USB Type-C port with USB 3.1 Gen 1 support, available through the internal USB header
4.2 x USB 3.1 Gen 1 ports available through the internal USB header
5.4 x USB 2.0/1.1 ports available through the internal USB headers Internal I/O Connectors
1.1 x 24-pin ATX main power connector
2.1 x 8-pin ATX 12V power connector
3.1 x 4-pin ATX 12V power connector
4.1 x CPU fan header
5.1 x water cooling CPU fan header
6.4 x system fan headers
7.2 x system fan/water cooling pump headers
8.1 x digital LED strip header
9.1 x digital LED strip power select jumper
10.2 x RGB (RGBW) LED strip headerss
11.3 x M.2 Socket 3 connectors
12.8 x SATA 6Gb/s connectors
13.1 x front panel header
14.1 x front panel audio header
15.1 x S/PDIF Out header
16.1 x USB Type-C header with USB 3.1 Gen 1 support
17.1 x USB 3.1 Gen 1 header
18.2 x USB 2.0/1.1 headers
19.1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
20.1 x power button
21.1 x reset button
22.1 x Clear CMOS button
23.2 x temperature sensor headers
24.1 x Clear CMOS jumper Back Panel Connectors
1.1 x PS/2 keyboard/mouse port
2.1 x USB Type-C port, with USB 3.1 Gen 2 support
3.1 x USB 3.1 Gen 2 Type-A port (red)
4.8 x USB 3.1 Gen 1 ports
5.2 x RJ-45 ports
6.2 x MMCX antenna connectors (2T2R)
7.1 x optical S/PDIF Out connector
8.5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In) I/O Controller
1.iTE I/O Controller Chip H/W Monitoring
1.Voltage detection
2.Temperature detection
3.Fan speed detection
4.Water cooling flow rate detection
5.Overheating warning
6.Fan fail warning
7.Fan speed control BIOS
1.2 x 128 Mbit flash
2.Use of licensed AMI UEFI BIOS
3.Support for DualBIOS
4.Support for Q-Flash Plus Unique Features
1.Support for APP Center
3D OSD
BIOS
AutoGreen
BIOS Setup
Color Temperature
Cloud Station
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
System Information Viewer
USB Blocker
USB DAC-UP 2
V-Tuner
2.Support for Q-Flash
3.Support for Xpress Install Bundle Software
1.Norton Internet Security (OEM version)
2.XSplit Gamecaster + Broadcaster (12 months license)
3.cFosSpeed Operating System
1.Support for Windows 10 64-bit Form Factor
1.ATX Form Factor 30.5cm x 24.4cm Item Dimension (L"xW"xH")
15 x 13 x 5 Weight
8.60 LBS
