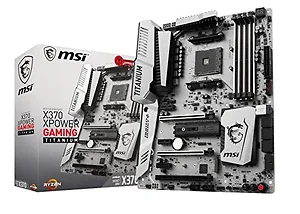

Msi X370 XPOWER GAMING TITANIUM Socket AM4/ AMD X370/ DDR4/ SATA3&USB3.1/ 3-Way CrossFireX & 2-Way SLI/ M.2&U.2/ A&GbE/

Specifications

• Mfr Part Number: X370 XPOWER GAMING TITANIUM
• CPU: Socket AM4
  • Supports AMD RYZEN Series/ 7th Gen A-series/ Athlon Processors
• Chipset: AMD X370
• Memory: 4x DDR4-3200(OC)+/ 2933(OC)/ 2667(OC)/ 2400/ 2133/ 1866 MHz Slots, Dual Channel, Max Capacity of 64GB
• Slots: 2x PCI-Express 3.0 x16 Slots, 1x PCI-Express 2.0 x16 Slot (runs at x4), 3x PCI-Express 2.0 x1 Slots
• Multi-Graphics: Supports 3-Way/ 2-Way AMD CrossFireX and 2-Way NVIDIA SLI Technology
• Storage:
  • SATA: 6x SATA3 Ports, Support RAID 0, 1, 10
  • M.2: 2x M.2 Ports (Key M), One Supports SATA3 & PCI-Express 3.0 x4 (RYZEN series processors) or PCI-Express 3.0 x2 (7th Gen A-series/ Athlon processors) & SATA3 2242/ 2260/ 2280/ 22110 storage devices, One Supports PCI-Express 2.0 x4 & SATA3 2242/ 2260/ 2280 storage devices
  • U.2: 1x U.2 Port, Supports PCI-Express 3.0 x4 (RYZEN series processors) or PCIe 3.0 x2 (7th Gen A-series/ Athlon processors) NVMe storage
• Audio: Realtek ALC1220 7.1-Channel High Definition Audio CODEC
• LAN: Intel I211AT Gigabit LAN Controller
• Ports: 3x USB 3.1 Gen2 Ports (1 Type-A rear, 1 Type-C rear, 1 via header), 8x USB 3.1 Gen1 Ports (4 Type-A rear, 4 via headers), 7x USB 2.0 Ports (3 Type-A rear, 4 via headers), 1x PS/2 Keyboard/Mouse Combo Port, 1x HDMI Port, 1x DisplayPort, 1x RJ45 LAN Port, 1x Optical S/PDIF Out, Audio I/O Jacks
• Power Connector: 1x 24-pin ATX Main Power Connector, 1x 8-pin ATX 12V Power Connector, 1x 4-pin ATX 12V Power Connector, 1x 6-pin ATX 12V Power Connector
• Form Factor: ATX, 12.0 x 9.6 inch / 30.5 x 24.4 cm
