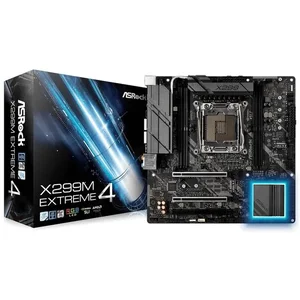

X299M EXTREME4 - Asrock MicroATX Motherboard for LGA2066

Overview

The ASRock X299M EXTREME4 is a high-performance MicroATX motherboard designed for Intel's LGA2066 socket. Built around the Intel X299 chipset, it supports the Intel Core X-Series Processor family, ensuring that you can harness the full power of your CPU for demanding applications.

Specifications

• CPU: LGA2066 support for Intel Core X-Series with Digi Power design and 11 Power Phase design.
• Chipset: Intel X299.
• Memory: 4x DDR4 slots supporting speeds up to 4266+(OC) and a maximum capacity of 64GB in Quad Channel configuration.
• Slots: 3x PCI-Express 3.0 x16 slots for powerful graphics solutions.
• Multi-Graphics: AMD Quad CrossFireX, CrossFireX, and NVIDIA Quad SLI technology support.
• Storage:
  • SATA: 8x SATA3 ports supporting RAID configurations.
  • M.2: 2x Ultra M.2 ports for high-speed storage solutions.
• Audio: Realtek ALC1220 7.1-Channel High Definition Audio CODEC.
• LAN: Dual Giga PHY Intel I219V and Intel I211AT Gigabit Ethernet Controllers for reliable networking.
• Ports: Comprehensive USB connectivity with 6x USB 3.1 Gen1, 2x USB 3.1 Gen2, and additional USB 2.0 ports.
• Power Connector: Features for stable power supply with 1x 24-pin and 2x 8-pin 12V power connectors.
• Form Factor: MicroATX, dimensions: 9.6 x 9.6 inch / 24.4 x 24.4 cm.
