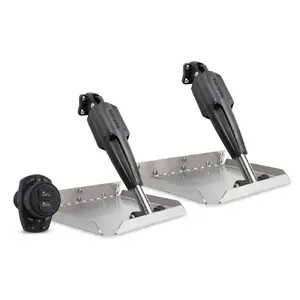

15185-106 - Lenco 12"x12" Edge Mount Trim Tab Kit w/Pro Control™ Assist

12"x12" Edge Mount Trim Tab Kit with Pro Control™ Assist

Features:

• Industry-leading connectivity - CAN-based protocol is standard, meaning ease of system integration and installation.
• Ease of use – precise control - Smart, sleek intuitive dial controller, designed to provide responsive precision controls.
• Instant access to favorite settings - Programmable memory position recall capabilities allow access to your two preferred trim tab settings at the touch of a button.
• Hands-free holeshot - Speed-based automatic deployment of the trim tabs – engage throttle and tabs deploy to get the boat on the plane quicker, plus automatic retract at slower speeds with no manual operation required.
• Built to last - Best-in-class 5-year warranty gives peace of mind to both boatbuilders and end users. Simple maintenance extends lifespan.

Specifications:

• Length x Width: 12"x12"
• Boat Length: 17'-30'
• Hinge Height: 2" (5.1cm)
• Minimum Transom Height: 14" (35.6cm)
• Keypad: Assist

Kit Includes:

• (1) Pro Control Assist Keypad (15175-106)
• (2) 12-gauge 304 (2.7 mm) stainless steel standard finish blades:
• Standard blades - with a 5/8" (1.6 cm) flared trailing edge.
• Edge Mount blades - with 1" (2.5 cm) turned-up edges a 5-degree taper on both sides to the trailing edge) and a 1/8" (3.2 mm) diameter hinge pin.
• (2) 2.25” Stroke SD Pro Actuators, 11.5” pin to pin (15189-001)
• (5) Micro C Tee Connector (30267-001D)
• Micro C Power Cable with Fuse and Ground (15197-101)
• (2) 6’ (1.82 m) Micro C Drop cables (15199-101), (1) 25’ (7.62 m) (30269-004) Micro C Drop cable
• (2) 6 Pin Deutsch to Micro C Actuator Network Adapter Cable (30377-001)
• (2) 3' (.91 m) Pro Control Actuator Power Pigtail (30378-001)
• (1) Wake Signal Adapter for Non-Mercury Systems (15207-101)
• (2) Corrosion proof Upper Mounting Brackets with gland seal (15193-101)
• (2) Corrosion-proof Lower Mounting Brackets (15194-101)

The Lenco 12"x12" Edge Mount Trim Tab Kit with Pro Control Assist is a trim accessory designed for marine applications, specifically for boats ranging from 17 to 30 feet in length. This kit provides a solution for optimizing boat performance and handling through precise trim tab adjustments. It features a CAN-based protocol for system integration and installation, aiming for streamlined setup within existing boat systems. The included Pro Control Assist keypad offers intuitive dial control for responsive adjustments and allows users to program two preferred trim tab settings for quick recall. The system also supports speed-based automatic deployment and retraction of the trim tabs, which can assist in getting a boat on plane more quickly without manual intervention. The 15185-106 kit includes 12"x12" stainless steel edge mount blades, 2.25" stroke SD Pro Actuators, and all necessary cabling and mounting hardware. It is built for durability and ease of maintenance, supported by a 5-year warranty.
