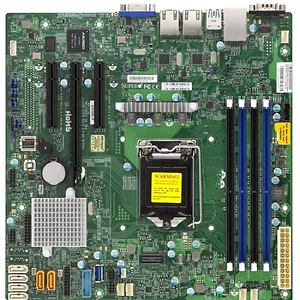

Technical Specifications
Processor/Cache
CPU:
Single Socket H4 (LGA 1151) supports:
- Intel Xeon processor E3-1200 v5, Intel 6th Gen Core i3, Intel Pentium, Intel Celeron processors
- CPU TDP up to 80W System Memory
Memory Capacity:
- 4x 288-pin DDR4 DIMM slots
- Up to 64GB DDR4 ECC UDIMM
Memory Type: 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes: 16GB, 8GB, 4GB
Memory Voltage: 1.2V
Error Detection:
- Corrects Single-Bit Errors
- Detects Double Bit Errors (Using ECC Memory) On-Board Devices
Chipset: Intel C232 Chipset
SATA:
- SATA3 (6Gbps) via C236 controller
- RAID 0, 1, 5, 10 support
Network Controllers:
- Dual Intel I210-AT Gigabit Ethernet LAN ports
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics: Aspeed AST1400 BMC Input/Output
SATA: 6x SATA3 (6Gbps) ports
LAN:
- 2x RJ45 Gigabit Ethernet LAN ports
USB:
- 5x USB 3.0 ports (2 rear + 2 via header + 1 Type A)
- 6x USB 2.0 ports (2 rear + 4 via header)
VGA: 1x VGA port
Serial Port/Header: 1x COM ports (1 rear)
SuperDOM:
- 2x SuperDOM (Disk on Module) ports with built-in power
TPM: 1x TPM 1.2 20-Pin Header Expansion Slots
PCI-Express:
- 1x PCI-E 3.0 x8 (in x16) slot
- 1x PCI-E 3.0 x8 slot
- 1x PCI-E 3.0 x4 (in x8) slot System BIOs
BIOs Type:
128Mb SPI Flash EEPROM with AMI UEFI BIOS
BIOs Features:
- Plug and Play (PnP)
- APM 1.2
- DMI 2.3
- PCI 2.3
- ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
- Hardware BIOs Virus Protection
- SMBIOS 2.7.1
- UEFI 2.3.1
- RTC (Real Time Clock) Wakeup Management
Software:
- NMI
- Watch Dog
- Super Doctor 5
Power Configurations:
- ACPI Power Management
- Keyboard Wakeup from Soft-Off
- CPU Fan auto-off in sleep mode
- Power-on mode for AC power recovery PC Health Monitoring
Voltage: Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
FAN:
- Total of 5 fan headers supporting up to 5 fans
5 fans with tachometer status monitoring
Status monitor for speed control
Status monitor for on/off control
Low noise fan speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
- Monitoring for CPU and chassis environment
- CPU thermal trip Support
- I2C temperature sensing logic
- Thermal Monitor 2 (TM2) support
- PECI
LED:
- CPU / System Overheat LED
- Suspend Static Trip Support
- UID/Remote UID
Other Features:
- Chassis Intrusion Detection
- Chassis Intrusion Header
- Chipkill Support
- RoHS Form Factor
MicroATX Item Dimension (L"xW"xH")
10 x 10 x 1
Weight
6.00 lb
Warranty Information
1 Year
