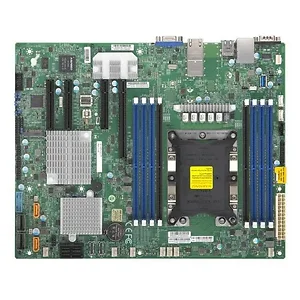

Supermicro X11SPH-NCTF-O ATX Server Motherboard for Xeon

Specifications

• CPU: Single Socket P LGA3647
  • Supports Intel Xeon Processor Scalable Family
  • CPU TDP support 205W
  • Up to 28 cores
• Chipset: Intel C622
• Memory: 8x 288pin DDR4-2666/2400/2133/1866/1600 DIMM Slots, Support up to 1TB ECC/3DS Load Reduced Memory or up to 512GB ECC/Load Reduced Memory or up to 256GB ECC/REG Memory
• Slots: 1x PCI-Express 3.0 x16 Slot (x16 or x8), 3x PCI-Express 3.0 x8 Slots (one x0 or x8, one runs at 4)
• SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10
• SAS: 8x SAS3 Ports, Support RAID 0, 1, 10
• Video: ASPEED AST2500 BMC Graphics
• LAN: Dual LAN with 10G SFP+ with Intel X722 + Inphi CS4227
• Ports: 5x USB 3.0 Ports (2 rear, 2 via header, 1 Type A), 8x USB 2.0 Ports (2 rear, 6 via headers), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x 10GbE LAN Ports
• Form Factor: ATX, 12.0 x 9.6 inch / 30.48 x 24.38 cm
• RoHS Compliant
