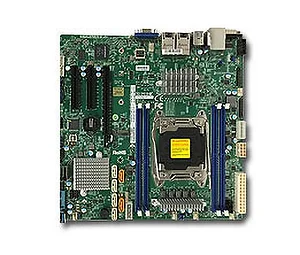

Supermicro X10SRM-TF-O LGA2011/ Intel C612/ DDR4/ SATA3&USB3.0/ V&2GbE/ MicroATX Server Motherboard

Form Factor
Micro ATX Processor
CPU : Intel Xeon processor E5-2600 v4/ v3, E5-1600 v4/ v3 family (up to 145W TDP )
Single Socket R3 (LGA 2011)
Core / Cache : Up to 22 Cores / Up to 55MB Cache System Memory
Memory Capacity : 4x 288-pin DDR4 DIMM slots
Up to 512GB ECC 3DS LRDIMM
Up to 256GB ECC LRDIMM
Up to 128GB ECC RDIMM
Memory Type : 2400/ 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs
DIMM Sizes : 3DS LRDIMM: 128GB
LRDIMM: 64GB, 32GB
RDIMM: 32GB, 16GB, 8GB, 4GB
Memory Voltage : 1.2 V
Error Detection : Corrects single-bit errors
Detects double-bit errors (using ECC memory) On-Board Devices
Chipset : Intel C612 chipset
SATA : SATA3 (6Gbps) via C612 controller
RAID 0, 1, 10 support
IPMI : Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC
Network Controllers : Dual LAN with Intel X550 10GBase-T Ethernet Controller
Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics : ASPEED AST2400 BMC Input / Output
SATA : 10x SATA3 (6Gbps) ports
LAN : 2x RJ45 10GBase-T Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port
USB : 5x USB 3.0 ports (2 rear + 2 via header + 1 Type A)
6x USB 2.0 ports (2 rear + 4 via header)
Video : 1x VGA port
Serial Port / Header : 2x COM ports (1 rear, 1 header)
SuperDOM : 2x SuperDOM (Disk on Module) ports with built-in power
TPM: 1x TPM 2.0 Header OS Compatibility
Please reference the OS Compatibility Chart for details Chassis (Optimized for X10SRM-TF )
1U Chassis:
SC514-R400C
SC514-505
SC515-R407
SC515-505
SC515-350
SC113MFAC2-605CB
SC113MFAC2-R606CB
SC813MFTQC-R407CB
SC813MFTQC-350CB
2U Chassis:
SC825TQC-R740LPB
SC825MTQ-R700LPB
SC213LT-600LPB
SC823TQ-653LPB
3U Chassis:
SC833T-653B
Mid/Mini Tower Chassis:
SC731i-300B Expansion Slots
PCI-Express : 1x PCI-E 3.0 x16 slot
2x PCI-E 3.0 x8 slots System BIOS
BIOS Type : 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features : Plug and Play (PnP)
APM 1.2
DMI 2.3
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
Hardware BIOS Virus protection
SMBIOS 2.7.1
UEFI 2.3.1
RTC (Real Time Clock) Wakeup Management
Software : Intel Node Manager
IPMI 2.0 with KVM support
SuperDoctor 5
Watch Dog
NMI
SPM
SUM
Power Configurations : ACPI Power Management
Keyboard Wakeup from Soft-Off
CPU Fan auto-off in sleep mode
Power-on mode for AC power recovery PC Health Monitoring
Voltage : Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
FAN : Total of 6 fan headers supporting up to 6 fans
6 fans with tachometer status monitoring
Status monitor for speed control
Status monitor for on/off control
Low noise fan speed control
Pulse Width Modulated (PWM) fan connectors
Temperature : Monitoring for CPU and chassis environment
CPU thermal trip support
I2C temperature sensing logic
Thermal Monitor 2 (TM2) support
PECI
LED : CPU / System Overheat LED
Suspend static indicator LED
UID/Remote UID
Other Features : Chassis intrusion detection
Chassis intrusion header
Chipkill support
RoHS, Halogen Free Item Dimension (L inchxW inchxH inch)
NA

Weight
3.00 lb

Warranty Information
1 Year
