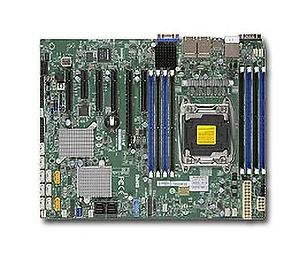

Supermicro X10SRH-CLN4F-B X10SRH-CLN4F Server Motherboard - Intel C612 Chipset - Socket LGA 2011-v3 - ATX

Specifications

• CPU: LGA2011
  Supports Intel Xeon E5-2600/1600 v3 Processors
  Supports up to 18 Cores
  Supports up to 45MB Cache
  Supports up to 145W TDP
• Chipset: Intel C612 Express
• Memory: 8x 284pin DDR4-2133/1866/1600/1333 DIMM Slots, Supports up to 512GB ECC Load Reduced Memory or up to 256GB ECC/REG Memory
• Slots: 1x PCI-Express 3.0 x16 Slot (runs at x8), 1x PCI-Express 3.0 x8 Slot (runs at x4), 3x PCI-Express 2.0 x8 Slot (runs at x4), 1x PCI-Express 2.0 x4 Slot (runs at x2)
• SATA: 10x SATA3 Ports, Support RAID 0, 1, 10
• SAS: 8x SAS3 Ports, Support RAID 0, 1, 10
• Video: Integrated ASPEED AST2400 BMC Graphics
• LAN: Intel i350-AM4 Quad Port Gigabit Ethernet Controller; 1x Realtek RTL8201N PHY (dedicated IPMI)
• Ports: 4x USB 3.0 Ports (2 rear, 1 via header, 1 Type A), 8x USB 2.0 Ports (2 rear, 6 via headers), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 4x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: ATX, 12.0 x 9.6 inch / 30.5 x 24.4 cm
• RoHS Compliant
