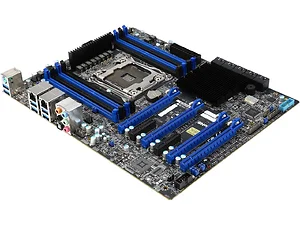

X10SRA-O - Supermicro X10SRA Server Motherboard - Intel C612 Chipset - Socket LGA 2011-v3 - ATX

Overview

The Supermicro X10SRA-O is a powerful ATX server motherboard designed to support Intel's LGA2011 processors, offering robust performance for enterprise applications.

Specifications

• CPU: Supports Intel Xeon E5-2600/1600 v3 family processors or 4th generation Intel Core i7 series, with capabilities of up to 18 cores and 45MB cache.
• Chipset: Intel C612 Express.
• Memory: 8x 288-pin DDR4 slots, supporting up to 512GB ECC or load-reduced memory, and configurations up to 256GB ECC registered or 64GB ECC non-ECC unbuffered.
• Expansion Slots: 4x PCI-Express 3.0 x16 slots, and 2x PCI-Express 2.0 x4 slots.
• SATA: 10x SATA3 ports supporting RAID levels 0, 1, 5, and 10.
• Audio: Integrated RealTek ALC1150 7.1-channel high definition audio CODEC.
• Networking: Dual port Intel i210-AT Gigabit Ethernet controller.
• Connectivity: 8x USB 3.0 ports (6 rear, 2 via header), 1x PS/2 keyboard/mouse port, 2x RJ45 LAN ports.
• Dimensions: ATX form factor, 12.0 x 9.6 inches (30.5 x 24.4 cm).
• Compliance: RoHS compliant.
