Product Overview

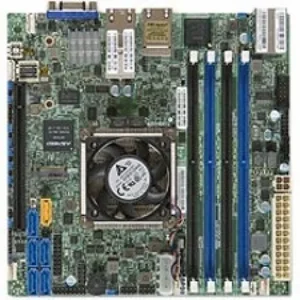

Supermicro X10SDV-TLN4F Server Motherboard - Intel Chipset - Socket BGA-1667 - Intel Xeon D-1540 Octa-core (8 Core) 2 GHz - 1 x Bulk Pack - Mini ITX - 1 x Processor Support - 128 GB DDR4 SDRAM Maximum RAM - 2.13 GHz Memory Speed Supported - DIMM, RDIMM, UDIMM - 4 x Memory Slots - Serial ATA/600 - On-board Video Chipset - 2 x USB 3.0 Port - ASPEED AST2400 - Gigabit Ethernet - 1 x PCI Express x16 Slots - 2 x USB Ports - VGA - 6 x SATA Interfaces
Technical Specifications
<b>Form Factor</b><br>Mini-ITX <b>Processor/Cache</b><br>CPU:<br>- Intel Xeon processor D-1541<br>- FCBGA 1667<br>- CPU TDP support 45W, 12MB, 8 Cores, 16 Threads <b>System Memory</b><br>Memory Capacity:<br>- 4 x DDR4 DIMM Sockets<br>- Supports up to 128GB DDR4 ECC RDIMM<br>- Supports up to 64GB DDR4 ECC/non-ECC UDIMM<br>Memory Type:<br>- 2400/2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM<br>- DIMM Size: 32GB, 16GB, 8GB, 4GB<br>Memory Voltage: 1.2V<br>Error Detection:<br>- Corrects Single Bit Errors<br>- Detects Double Bit Errors (Using ECC Memory) <b>On-Board Devices</b><br>Chipset: System on Chip<br>SATA: SoC Controller for 6 SATA3 (6Gbps) Ports, RAID 0, 1, 5, 10 RSTe<br>Network Controllers:<br>- Dual LAN via Intel i350-AM2 Gigabit Ethernet<br>- Dual LAN via SoC 10GBase-T<br>- Virtual Machine Device Queues reduce I/O overhead<br>- Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output<br>- 1 Realtek RTL8201N PHY (dedicated IPMI)<br>IPMI:<br>- Support for Intelligent Platform Management Interface v.2.0<br>- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support<br>Video: Aspeed AST2400<br>TPM: TPM Header <b>Input/Output</b><Br>SATA: 6 SATA 3 (6Gbps) Ports<br>LAN:<br>- 2 RJ45 Gigabit Ethernet LAN ports<br>- 2 RJ45 10GBase-T ports<br>- 1 RJ45 Dedicated IPMI LAN port<br>USB:<br>- 2 USB 3.0 Ports (Rear)<br>- 4 USB 2.0 Ports (Via Header)<br>Video: 1 VGA Port<br>Serial Port/Header: 1 COM Port (Header)<br>DOM: 1 SuperDOM (Disk on Module) power connector <b>Expansion Slots</b><br>PCI-Express: 1 PCI-E 3.0 x16 Slot<br>M.2:<br>- Interface: PCI-E 3.0 x4<br>- Form Factor: M Key 2242/2280<br>- Support SATA Devices <b>System BIOs</b><br>BIOs Type: 128MB SPI Flash with AMI BIOs<br>BIOs Features:<br>- PCI 3.0<br>- ACPI 5.0<br>- USB Keyboard Support<br>- Hardware BIOs Virus Protection<br>- SMBIOS 2.8<br>- UEFI 2.4<br>- RTC (Real Time Clock) Wakeup <b>Management</b><Br>Software:<br>- IPMI 2.0<br>- KVM with Dedicated LAN<br>- NMI<br>- SUM<br>- Super Doctor 5<br>- Watch Dog<br>Power Configurations:<br>- ACPI / APM Power Management<br>- CPU Fan Auto-Off in Sleep Mode<br>- Power-on Mode for AC Power Recovery <b>PC Health Monitoring</b><br>Voltage:<br>- Monitors for CPU Cores, +1.8V, +12V, +3.3V, +5V, Chassis intrusion header, System level control<br>Fan:<br>- Total of three 4-pin fan headers supporting tachometer status monitoring<br>- Dual Cooling Zone<br>- Status monitor for speed control<br>- Status monitor for on/off control<br>- Low noise fan speed control<br>- Pulse Width Modulated (PWM) fan connectors<br>Temperature:<br>- Monitoring for CPU and chassis environment<br>- CPU thermal trip support<br>- Thermal Monitor 2 (TM2) support<br>- PECI<br>LED: CPU / System Overheat LED<br>Other Features:<br>- Chassis Intrusion Detection<br>- Chassis Intrusion Header<br>- 12V DC or ATX Power Source<br>-RoHS <b>Operating Environment</b><Br>Operating Temperature Range: 0 C to 60 C (32 F to 140 F) <b>Item Dimension (L inchxW inchxH inch)</b><br>NA</b><br><br><b>Weight</b><br> 3.00lb <br><br><b>Warranty Information</b><br>1 year
