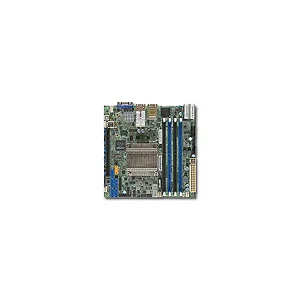

Supermicro X10SDV-6C-TLN4F-B Intel Xeon D-1528/ DDR4/ SATA3&USB3.0/ V&4GbE/ Mini-ITX Motherboard & CPU Combo

Specifications

• Mfr Part Number: X10SDV-6C-TLN4F-B

• CPU (Included): Intel Xeon D-1528 Processor; Support up to 35W TDP (Six-Core)

• Chipset: System on Chip

• Memory: 4x DDR4-2133/ 1866/ 1600MHz DIMM Slots, Support up to 128GB ECC/REG Memory or up to 64GB ECC/Non-ECC Unbuffered Memory

• Slots: 1x PCI-Express 3.0 x16 Slot; 1x M.2 Slot (M key 2242/2280, PCI-Express 3.0 x4)

• SATA: 6x SATA3 Ports

• Video: Aspeed AST2400 Graphics

• LAN: Dual 10-Gigabit and Intel i350-AM2 Dual-Port Gigabit Ethernet Controllers, 1x Realtek RTL8201N PHY (dedicated IPMI)

• Ports: 2x USB 3.0 Ports, 4x USB 2.0 Ports (via headers), 1x VGA Port, 2x RJ45 LAN Ports, 2x RJ45 10Base-T Ports, 1x RJ45 Dedicated IPMI LAN Port

• Form Factor: Mini-ITX, 6.7 x 6.7 inch / 17.0 x 17.0 cm

• Intel Xeon D-1528 is included with this motherboard.

• RoHS Compliant
