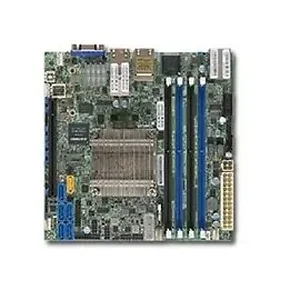

Supermicro X10SDV-4C-TLN4F-B Mini-ITX Motherboard & Intel Xeon D-1518 Combo

Product Overview

The Supermicro Mini-ITX Motherboard is designed to deliver exceptional performance with an integrated Intel Xeon D-1518 Processor. Ideal for compact server environments, this motherboard supports advanced features necessary for reliable computing.

Specifications

• CPU (Included): Intel Xeon D-1518 Processor; Support up to 35W TDP (Quad-Core)
• Chipset: System on Chip
• Memory: 4x DDR4-2133/1866/1600MHz DIMM Slots, Support up to 128GB ECC/REG Memory or up to 64GB ECC/Non-ECC Unbuffered Memory
• Slots: 1x PCI-Express 3.0 x16 Slot; 1x M.2 Slot (M key 2242/2280, PCI-Express 3.0 x4)
• SATA: 6x SATA3 Ports
• Video: ASPEED AST2400 Graphics
• LAN: Intel i350-AM2 Dual-Port Gigabit Ethernet Controller, Dual-Port 10GBase-T Ethernet Controller, 1x Realtek RTL8201N PHY (dedicated IPMI)
• Ports: 2x USB 3.0 Ports, 4x USB 2.0 Ports (via headers), 2x RJ45 10GBase-T Ports, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port, 1x VGA Port
• Form Factor: Mini-ITX, 6.7 x 6.7 inch / 17.0 x 17.0 cm
• RoHS Compliant
