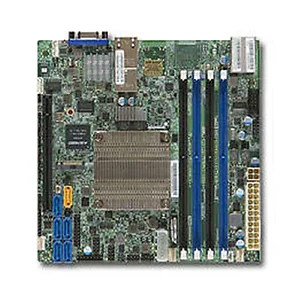

Supermicro X10SDV-4C-TLN2F-B Motherboard MBD-X10SDV-4C-TLN2F-B Xeon D-1520 FCBGA 1667 4-Core DDR4 MiniITX Brown Box

CPU
Intel Xeon processor D-1520
FCBGA 1667 supported
CPU TDP support 45W, 2.2-2.6GHz, 12MB, 4 Cores, 8 Threads

Memory Capacity
4x DDR4 DIMM sockets
Supports up to 128GB DDR4 ECC RDIMM
Supports up to 64GB DDR4 ECC/non-ECC UDIMM

Memory Type
2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM

DIMM Sizes
32GB, 16GB, 8GB, 4GB

Memory Voltage
1.2 V

Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

Chipset
System on Chip

SATA
System on Chip

Network Controllers
Dual LAN via SoC 10GBase-T
Virtual Machine Device Queues reduce I/O overhead
Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8201N PHY (dedicated IPMI)

IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Video
Aspeed AST2400

TPM
TPM header

SATA
6x SATA3 (6Gbps) ports

LAN
2x RJ45 Gigabit Ethernet LAN ports
2x RJ45 10GBase-T ports
1x RJ45 Dedicated IPMI LAN port

USB
2x USB 3.0 ports (rear)
4x USB 2.0 ports (via headers)

Video
1x VGA port

Serial Port / Header
1x COM port (header)

DOM
1x SuperDOM (Disk on Module) power connector

1U Chassis
SC504-203B
SC505-203B

PCI-Express
1x PCIe 3.0 x16 slot
M.2 PCIe 3.0 x4, M Key 2242/2280

BIOS Type
128Mb SPI Flash with AMI BIOS

BIOS Features
Plug and Play (PnP)
APM 1.2
DMI 2.3
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
Hardware BIOS Virus protection
SMBIOS 2.7.1
UEFI
RTC (Real Time Clock) Wakeup

Software
IPMI 2.0
KVM with dedicated LAN
NMI
SUM
SuperDoctor 5
Watch Dog

Power Configurations
ACPI / APM Power
Management CPU Fan auto-off in sleep mode
Power-on mode for AC power recovery

Voltage
Monitors for CPU Cores, +1.8V, +12V, +3.3V, +5V, Chassis intrusion header, System level control

FAN
Total of three 4-pin fan headers supporting tachometer status monitoring
Status monitor for speed control
Status monitor for on/off control
Low noise fan speed control
Pulse Width Modulated (PWM) fan connectors

Temperature
Monitoring for CPU and chassis environment
CPU thermal trip support
Thermal Monitor 2 (TM2) support
PECI

LED
CPU / System Overheat LED

Other Features
Chassis intrusion detection
Chassis intrusion header
12V DC or ATX Power Source

Item Dimension (L"xW"xH")
6.7 x 6.7 x 1

weight
2.00 lb

Warranty Infotmation
1 Year
