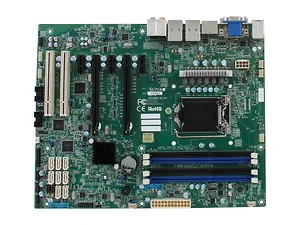

Supermicro X10SAE-O X10SAE Server Motherboard - Intel C226 Chipset - Socket H3 LGA-1150 - ATX

Specifications

• CPU: LGA1150
• Supports: Intel Xeon E3-1200 v3, 4th Generation Intel Core i7/i5/i3, Pentium, Celeron Processors
• Chipset: Intel C226 Express
• Memory: 4x 240pin DDR3-1600 DIMM Slots, ECC/Non-ECC, Unbuffered, Max Capacity of 32GB
• Expansion Slots: 2x PCI-Express 3.0 x16 (one x8), 3x PCI-Express 2.0 x4 (runs at x1), 2x PCI (5V, 32-bit)
• SATA: 8x SATA3 Ports, Six support RAID 0, 1, 5, 10 (via PCH), two support RAID 0, 1 (via ASM1061)
• Audio: Realtek ALC1150 7.1-Channel High Definition Audio CODEC
• LAN: Intel i217LM and Intel i210AT Gigabit Ethernet Controllers
• Ports: 6x USB 3.0 (2 rear, 4 via headers), 10x USB 2.0 (4 rear, 6 via headers), 1x PS/2 Keyboard/Mouse, 1x VGA, 1x DVI, 1x HDMI, 1x DisplayPort, 2x RJ45 LAN, Audio I/O Jacks
• Form Factor: ATX, 12.0 x 9.6 inch / 30.48 x 24.40 cm
• RoHS Compliant
