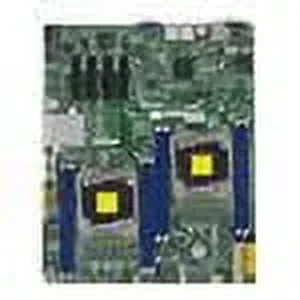

Supermicro X10DRD-I-O X10DRD-i Server Motherboard - Intel C612 Chipset - Socket LGA 2011-v3 - Extended ATX

Specifications

• Mfr Part Number: X10DRD-I-O
• CPU: Dual LGA2011
  • Support Intel Xeon E5-2600 v4/ v3 Family Processors

  • Support up to 22 Cores
  • Support up to 55MB Cache
  • QPI up to 9.6 GT/s
  • Support up to 145W TDP
• Chipset: Intel C612
• Memory: 8x 288pin DDR4-2400/ 2133/ 1866/ 1600 DIMM Slots, Support up to 1TB ECC/3DS Load Reduced Memory or up to 256GB ECC/REG Memory
• Slots:  4x PCI-Express 3.0 x8 Slots
• SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10
• Video: Aspeed AST2400 BMC Graphics
• LAN: Intel i350 Dual Port Gigabit Ethernet Controller, 1x Realtek RTL8211E PHY (dedicated IPMI)
• Ports: 7x USB 2.0 Ports (4 rear, 2 via header, 1 Type A), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: EATX, 13.05 x 10.50 inch / 33.1 x 26.7cm
• RoHS Compliant
