WS2-C30 - Airmar NMEA2000 Cable - 30M

NMEA2000 Cable - 30M

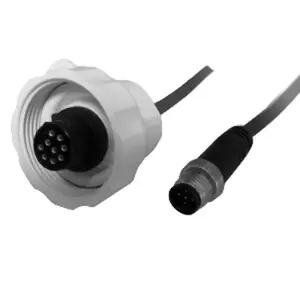

WeatherStation cables are available in four versions: NMEA 0183, NMEA 2000, combined NMEA 0183 and 2000, and Furuno NMEA 0183. All cables have a round white connector at one end that fits into the base of a weather station.

NMEA 2000 cables end in a standard male NMEA 2000 5-Pin connector. If the cable is longer than 6 meters, it contains a built-in termination resistor and is intended to be used as an extension of the network backbone.

NMEA 0183 cables end in an Airmar 8-Pin connector (CX-128) which can be removed if necessary.

Combined cables end in an Airmar 8-Pin connector and are supplied with an Airmar splitter box that has NMEA 0183 and NMEA 2000 output ports.

Furuno cables end in a 7-Pin Furuno connector and are designed to plug into Furuno NMEA 0183 equipment.

With NMEA 2000 output only. End in a standard male 5-Pin NMEA 2000 connector.

The Airmar NMEA2000 Cable - 30M (WS2-C30) is a specialized connectivity solution designed for integrating Airmar WeatherStation devices into an NMEA 2000 network. This cable is suitable for IT professionals and system integrators managing marine or environmental monitoring systems that require reliable data transmission over extended distances. It addresses the need for a direct NMEA 2000 connection, providing a dedicated pathway for weather station data. The cable features a round white connector for the weather station base and a standard male 5-Pin NMEA 2000 connector for network integration. At 30 meters in length, this cable includes a built-in termination resistor, making it suitable for extending the network backbone. This design simplifies network architecture by eliminating the need for an external terminator when used as an backbone extension.
