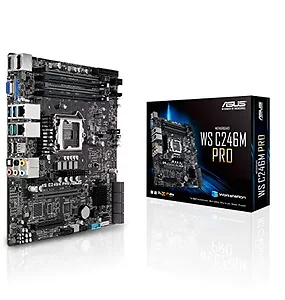

Asus WS C246M PRO Motherboard WS C246M PRO LGA1151 C246 Max 64GB DDR4 PCI Express USB3.1 micro-ATX Retail

Processor / System Bus
1 x Socket LGA1151
Intel Xeon processor E-2100 family
Intel Pentium^TM processors
Intel Celeron^TM processors
Intel Core^TM i7/i5/i3 processors
Core Logic
Intel C246 Chipset
Memory
-Total Slots : 4 (2-channel)
-Capacity : Maximum up to 64GB UDIMM
-Memory Type :
Dual Channel DDR4 2666/2400 /2133
-Memory Size :
16GB, 8GB UDIMM
Expansion Slots
Total Slot : 3
Slot Location 1 : PCI-E x1 (Gen2 X1 Link)
Slot Location 2 : PCI-E x16 (Gen3 X16 Link)
Slot Location 3 : PCI-E x8 (Gen3 X4 Link)
Form Factor
U ATX (9.6"x9.6", 244mm x 244mm)
Storage
-SATA Controller :
Intel C246 Chipset
8 x SATA3 6Gb/s ports
Intel Rapid Storage Technology(RST) (For Linux/Windows)
(Support Software RAID )
-SAS Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional)
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional)
Networking
1 x Intel I210AT
1 x i219-LM
On Board I/O
2 x USB 2.0 pin header
1 x USB 3.0 pin header
1 x M.2 Connector , NGFF Type : 2280/2260/2242
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
1 x COM port
1 x TPM header
1 x S/PDIF Out (Optical)
Back I/O Ports
2 x USB 3.1 ports (Type A)
2 x USB 3.0 ports
2 x USB 2.0 ports
1 x HDMI
1 x DisplayPort
1 x VGA
2 x RJ-45 ports
8-channel Audio I/O ports (5+1 Audio jacks)
Management Solution
WfM 2.0, DMI 3.0, WOL by PME, WOR by PME, PXE
Accessories
Gift Box (1-in-1)
1 x Support CD
1 x I/O shield
8 x SATA 6G cables
1 x Com port cable
1 x User manual
1 x Quick start guide
1 x M.2 screw

Bulk Pack (10-in-1)
1 x Support CD
10 x I/O shield
80 x SATA 6G cables
10 x Com port cable
1 x User manual
1 x Quick start guide
10 x M.2 screw
Monitoring
CPU Temperature
Fan RPM
Weight
17.20lb
Warranty Information
3 Years w/ 1st year ARS
