WLN-M - Shuttle Computers UNIVERSAL WLAN-AC / BLUETOOTH COMBO KIT WITH M.2 CARD

Special Order
Ships in 1-2 weeks
Condition: New

$61.15  $82.55
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

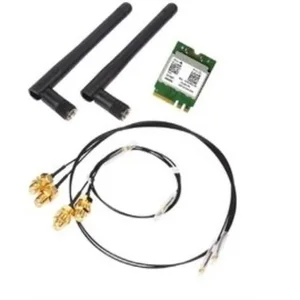

The Shuttle WLN-M Universal WLAN-ac/Bluetooth Combo Kit is designed to enhance connectivity in compatible Shuttle XPC slim and cube barebone PCs. This versatile kit includes an M.2-2230 WLAN card, multiple antenna cables, and dipole antennas, ensuring robust wireless performance and reliable Bluetooth connectivity.

Technical Specifications

  • Contents:
    • M.2-2230 (NGFF) WLAN card
    • Two antenna cables for XPCs slim (length: 21cm and 29cm)
    • Two antenna cables for XPCs cube (length: 53cm)
    • Two dipole antennas
    • Quick Guide (English, German, French)
    • Windows driver DVD
  • Compatible with:
    • Shuttle XPC slim Barebone PCs: DH110, XH110(V)
    • Shuttle XPC cube Barebone PCs: SH110R4
  • Supported Operating Systems:
    • Windows 7, Windows 8.1, Windows 10, Linux (32- / 64-bit)
  • WLAN Standard:
    • Supports WiFi IEEE 802.11b/g/n/ac in the 2.4 / 5 GHz band, 1T1R
    • PCI-Express V1.1 host interface
  • Encryption Technology:
    • Supports WPA2 (IEEE 802.11i with AES), WPA and WAPI
  • Bluetooth Standard:
    • Supports Bluetooth 4.0 in the 2.4 GHz band, USB 2.0 host interface
  • Maximum PHY Data Rate:
    • 72.2 / 150 Mbps using 20 / 40 MHz bandwidth in n-mode
    • 433.3 Mbps using 80 MHz bandwidth in ac-mode
  • Adapter Card:
    • Model: Chicony C706E0
    • Chipset: Realtek RTL8821AE
    • M.2-2230 (NGFF) extension card
  • Temperature Range:
    • 0 to 70°C (Operating), -20 to 70°C (Storage)
  • Humidity:
    • 10 to 80% Non-Condensing
  • EMC Certification:
    • CE, FCC
  • Antenna Cables:
    • Four WLAN cables with diverse lengths
    • Connectors: I-PEX MHF and RP-SMA Pigtail male
  • Antennas:
    • Two external dipole antennas
    • Frequency range: 2.4 / 5 GHz band, omnidirectional
    • Total length: 108 mm, diameter: 7.8 to 10.0 mm
  • Item Dimensions: 8 x 6 x 2 inches
  • Weight: 1.00 lb
  • Warranty Information: 3 years

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • TAA Compliant:
  • Country of Origin:
  • Shuttle Computers
  • WLN-M
  • B01DPPPYC0
  • 887993800035
  • New
  • 1 lbs
  • 1 X 0 X 1
  • Jun 14, 2026
  • Dec 23, 2016
  • Yes
  • NN
Product Identifiers: Brand: Shuttle Computers • Part #: WLN-M • UPC: 887993800035 • ASIN: B01DPPPYC0 • Category: Components • TAA Compliant
