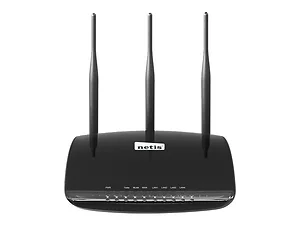

Netis-systems WF2533 netis WF2533 300Mbps Wireless N High Power Router w/ 3x 5dBi Detachable Antenna

Specifications

• Mfr Part Number: WF2533
• Features:
  • Incredible wireless high speed up to 300Mbps
  • High transmission power to boost wireless signal for further distance
  • Enhanced signal strength to penetrate walls and eliminate Wi-Fi dead zones
  • 3x high gain 5dBi detachable antenna design allowing for flexible antenna upgrades
  • Various WAN connection types in AP Router mode- DHCP, Static IP, PPPoE, L2TP, PPTP, Dual Access (Russia PPPoE/PPTP/L2TP), WISP
  • Multiple wireless modes- AP, Repeater, AP+WDS, WDS, Client
  • Multi-SSID providing up to 3 additional separate networks for guests and friends
  • Easy wireless security setup at a push of the WPS button
  • Turbo button to improve the signal strength in a snap
  • Intelligent bandwidth control to manage the bandwidth usage for each computer reasonably
  • Internet Access Control- IP filtering, MAC Filtering, Domain Filtering based on time
  • Quick setup, with built-in multilingual management page
• Hardware:
  • Standard: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX
  • Interface: 1x 10/100/1000Mbps Auto MDI/MDIX RJ45 WAN Port, 4x 10/100/1000Mbps Auto MDI/MDIX RJ45 LAN Ports
  • LED: PWR, Turbo,WAN, LAN1-LAN4 (Turbo LED Status: Blue for Normal Power, Red for High Power)
  • Button: Turbo, Default, WPS
  • Antenna: 3x 5dBi Detachable Antenna, SMA Connector

  • Power Supply: 12V DC/ 1.0A (Output)
• Wireless:
  • Standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

  • Signal Rate: Up to 300Mbps
  • Frequency Range: 2.4-2.4835GHz

  • Transmit Power: <20dBm( For countries using CE Standards), <27dBm( For countries using FCC Standards)

  • Data Transfer Rate:
    • 802.11n:
      • 40MHz - 300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps
      • 20MHz - 144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps (Auto-Sense)

    • 801.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps

    • 802.11b: 11Mbps, 9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps

  • Wireless Mode: AP, Repeater, AP+WDS, WDS, Client

  • Wireless Security: 64/128-bit WEP, WPA-PSK/WPA2-PSK (TKIP/AES), SSID Broadcast Enable/Disable, Wireless MAC Filtering
• Software:
  • WAN Type: DHCP, Static IP, PPPoE, L2TP, PPTP, Dual Access, WISP
  • Port Forwarding: Virtual Servers, Port Triggering, UPnP, DMZ, FTP Private Port
  • QoS: WMM, Bandwidth Control
  • Access Control: IP/MAC/Domain filtering
  • VPN Pass-through: PPTP, L2TP, IPSEC
  • Others: Multiple SSID, Dynamic DNS, Static Routing, WOL
• Others:
  • Certification: FCC, CE
  • Environment:
    • Operating Temperature: 0°C-40°C
    • Storage Temperature: -40°C-70°C
    • Operating Humidity: 10%-90% non-condensing
    • Storage Humidity: 5%-90% non-condensing

  • Package: WF2533, 12V/1A Power Adapter, Ethernet Cable, Quick Installation Guide(Multilingual)
