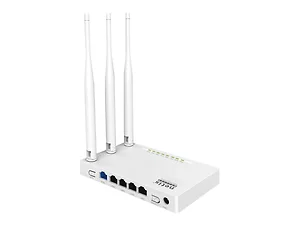

Netis-systems WF2409E netis WF2409E 300Mbps Wireless N Router w/ 2x 5dBi Fixed Antenna

Specifications

• Mfr Part Number: WF2409E

• Features:
  • Incredible wireless high speed up to 300Mbps, great for faster downloading, Internet calling and HD video streaming
  • MIMO high gain 5dBi antennas providing maximum range and stable connections
  • Dual operation modes- Router, Bridge (pure access point)
  • Various WAN connection types in AP Router mode- DHCP, Static IP, PPPoE, L2TP, PPTP, Dual Access, WISP
  • Multiple wireless modes- AP, Repeater, AP+WDS, WDS, Client
  • Multi-SSID providing up to 3 additional separate networks for guests and friends
  • Easy wireless security setup at a push of the WPS button
  • Intelligent bandwidth control to manage the bandwidth usage for each computer reasonably
  • Internet Access Control- IP filtering, MAC Filtering, Domain Filtering based on time
  • Quick setup, with built-in multilingual management page
• Hardware:
  • Standard: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX
  • Interface: 1x 10/100M Auto MDI/MDIX RJ45 WAN Port, 4x 10/100M Auto MDI/MDIX RJ45 LAN Ports
  • LED: PWR, WLAN, LAN1-LAN4, WAN, WPS
  • Button: Default, WPS
  • Antenna: 2x 5dBi Fixed Antenna

  • Power Supply: 9V DC/ 500mA (Output)
• Wireless:
  • Standards: IEEE 802.11b/g/n

  • Signal Rate: Up to 300Mbps
  • Frequency Range: 2.4 - 2.4835GHz
  • Transmit Power: 20dBm (MAX)
  • Data Transfer Rate:
    • 802.11n:
      • 40MHz - 300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps

      • 20MHz - 144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps (Auto-Sense)
    • 801.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps
    • 802.11b: 11Mbps,9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps

  • Wireless Mode: AP, Repeater, AP+WDS, WDS, Client, Multi-SSID

  • Wireless Security: 64/128-bit WEP,  WPA-PSK/WPA2-PSK (TKIP/AES) SSID Broadcast Enable/Disable Wireless MAC Filtering

• Software:
  • WAN Type: DHCP, Static IP, PPPoE, L2TP, PPTP, Dual Access, WISP
  • Port Forwarding: Virtual Servers, Port Triggering, UPnP, DMZ, FTP Private Port

  • QoS: WMM, Bandwidth Control
  • Access Control: IP/ MAC/ Domain filtering

  • VPN Pass-through: PPTP, L2TP, IPSEC
  • Others: IPTV, Dynamic DNS, Static Routing, WOL, Backup & Restore, Firmware Upgrade
• Others:
  • Certification: FCC, CE
  • Environment:
    • Operating Temperature: 0°C-40°C
    • Storage Temperature: -40°C-70°C
    • Operating Humidity: 10%-90% non-condensing
    • Storage Humidity: 5%-90% non-condensing
  • Package: 1x WF2409E, 1x 9V/500mA Power Adapter, 1x Ethernet Cable, 1x Quick Installation Guide (Multilingual)
