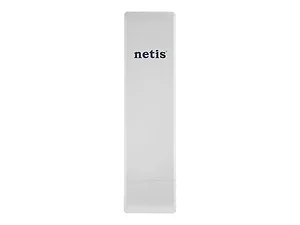

Netis-systems WF2322 netis WF2322 300Mbps Wireless N High Power Outdoor AP Router w/ 1x 10dBi Antenna

Specifications

• Mfr Part Number: WF2322
• Features:
  • Comply with 802.11b/g/n standard, data rate up to 300Mbps
  • Maximum 1000mW Transmit Power enabling long range connectivity
  • Internal High gain 10dBi directional antenna, dual-polarity
  • IP55 Waterproof for case
  • Various WAN connection types- DHCP, PPPoE, Static IP, Russia PPPoE, Unifi PPPoE, L2TP/Russia L2TP, PPTP/Russia PPTP, WISP
  • Multiple wireless modes- AP, Router, WISP, AP + Client, AP + Repeater, WISP + Client, WISP + Repeater
  • ESD protection up to 15KV
  • Remote reset from power adapter
• Hardware:
  • Standard: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX
  • Interface: 2x 10/100Mbps LAN Ports
  • LED Indicator: Power, WLAN, LAN-Main, LAN-Secondary, Wireless Signal 1-4
  • Button: Reset
  • Antenna: 1x 10dBi directional Antenna (Dual-polarity)
  • Power Supply: 24V DC/0.5 A (Proprietary PoE)
• Wireless:
  • Standards: IEEE 802.11b/g/n
  • Signal Rate: Up to 300Mbps
  • Frequency Range: 2.4 - 2.4835GHz
  • Transmit Power:
    • <20dBm (For countries using CE Standards)
    • <30dBm (For countries using FCC Standards)
  • Receive Sensitivity: -99dBm(Maximum)
  • Data Transfer Rate:
    • 802.11n:
      • 40MHz - 300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps
      • 20MHz - 144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps
    • 801.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps, 6Mbps
    • 802.11b: 11Mbps, 5.5Mbps, 2Mbps, 1Mbps
  • Wireless Mode: AP, Router, WISP, AP + Client, AP + Repeater, WISP + Client, WISP+ Repeater
  • Wireless Security: 64/128-bit WEP, WPA-PSK/WPA2-PSK (TKIP/AES), SSID Broadcast Enable/Disable, Wireless MAC Filtering
• Software:
  • WAN Type: DHCP, PPPoE, Static IP, Russia PPPoE, Unifi PPPoE, L2TP/Russia L2TP, PPTP/Russia PPTP, WISP
  • Port Forwarding: Virtual Servers, UPnP, DMZ
  • QoS: Bandwidth Control
  • Access Control: MAC Filtering
  • Others: Dynamic DNS, PSE
• Others:
  • Certification: FCC, CE
  • Environment:
    • Operating Temperature: -30°C-70°C (estimated)
    • Storage Temperature: -30°C-80°C (estimated)
    • Operating Humidity: 0%-90% non-condensing
    • ESD conductive: 15kV
    • ESD Air: 10kV
  • Package: WF2322, 24V/500mA Passive PoE Power Adapter, AC Power Cord, 2x Cable Ties, Quick installation Guide
