SKU: BZFC91PN1Y |  Mfg. Part: WAP1750  | UPC: 649659025042  |
 1 Reviews  |     Share

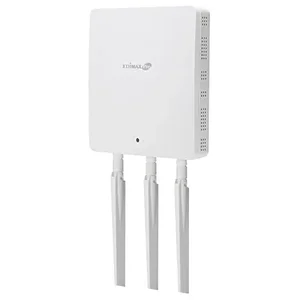

Edimax WAP1750 Dual-Band AC1750 Wall Mount Access Point

Out of Stock
Condition: New

$264.06  $356.48
 Free Shipping for this Item

Product Overview

The Edimax WAP1750 is a high-performance dual-band access point designed for long-range wireless connectivity. With concurrent data speeds of up to 1750Mbps, it provides an ideal solution for both home and business environments, supporting a large number of clients and multiple SSIDs.

Featuring advanced security options and various management tools, the WAP1750 ensures a reliable and secure network connection while easy to deploy and configure for various networking needs.

Technical Specifications

  • Hardware:
    • LAN Interface: Giga x 2
    • PoE: 802.3at (in) / 802.3af (out)
    • Antenna: 3 x External, Gain: 2dBi (2.4GHz), 2dBi (5GHz)
    • Power: DC: 12V / 4A, 802.3at (PoE Injector Optional)
    • Power Consumption: 15W (Exclude PoE-Out)
    • Mounting: Wall / Desktop
    • Console: RJ45
    • WPS/Reset: Yes
    • LED Indicators: Power LED, Diag LED
    • Power Saving: 802.3az
    • Internal Buzzer: Yes
    • Security Cover: Yes (Optional)
  • Wireless:
    • Standard: 802.11 a/b/g/n/ac Concurrent Dual-Band
    • No. of Radios: 2
    • Max. Output Power (dBm): 27.5 (2.4GHz & 5GHz)
    • Receiver Sensitivity: -94.5dBm
    • Transmit Power (mW): 560mW
    • Certification: CE/FCC
    • Fast Roaming: Yes
    • Number of SSIDs: Up to 32 (16 on 2.4GHz + 16 on 5GHz)
  • Performance:
    • Maximum Data Speed: 450 + 1300Mbps
    • Concurrent Clients: Up to 50 Per Radio
  • Software:
    • Wireless Mode: AP / WDS AP / WDS Bridge
    • 802.1q VLAN: Yes (VID equal 1-4094)
    • Spanning Tree: RSTP
    • QoS: WMM (802.11e)
    • Max Associated Stations: Supported
    • Pass-Through: IPv6 and VPN (PPTP, L2TP/IPsec)
    • DSCP (802.1p): Yes
    • Multicast Rate up to 54Mbps: Yes
  • Management:
    • Deployment: Standalone
    • Managed by Edimax Pro NMS
    • Configuration: HTTP/HTTPS, SNMP v1, v2c, v3, CLI (Telnet, SSH)
    • RADIUS Server: Built-In
    • Auto-Channel: Yes
    • Private MIB: Yes
  • Security:
    • Encryption: WEP / WPA / WPA2
    • Wireless L2 Isolation: Yes
    • Station Isolation: Yes
    • IEEE 802.1x Authenticator: Yes
    • EAP Authentication: EAP-FAST / EAP-SIM / EAP-AKA
    • Hidden SSID: Yes
    • MAC Address Filter: Yes
    • Wireless STA: Yes
    • Rogue AP Detection (with NMS): Yes
  • Dimensions: 14 x 9.5 x 3.25 inches
  • Weight: 3.1 lb
  • Warranty Information: 2 Years

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Edimax
  • WAP1750
  • 649659025042
  • New
  • 1.25 lbs
  • 7 X 2 X 7
  • Feb 19, 2026
  • Oct 08, 2014
Product Identifiers: Brand: Edimax • Part #: WAP1750 • UPC: 649659025042 • Category: Wireless Access Points

Edimax WAP1750 Dual-Band AC1750 Wall Mount Access Point

Reviews for Edimax WAP1750

$264.06
