SKU: PASLFDSV0U |  Mfg. Part: WAP1200  | UPC: 649659025110  |
 1 Reviews  |     Share

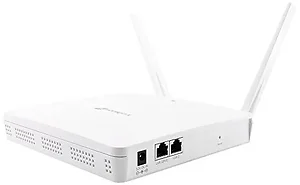

Edimax WAP1200 AC1200 Dual-Band Wall Mount PoE Access Point

Out of Stock
Condition: New

$179.59  $242.45
 Free Shipping for this Item

Product Overview

The Edimax AC1200 Dual-Band Access Point provides a reliable and powerful solution for wireless networking, featuring advanced dual-band technology for both 2.4GHz and 5GHz frequencies. Designed for long-range coverage, this device is perfect for both home and commercial use, allowing seamless connectivity through a wide range of devices.

With support for Power over Ethernet (PoE), installation is straightforward—simply mount it on a wall or set it on a desktop. The access point can manage multiple users efficiently, making it ideal for environments with high data traffic demands.

Technical Specifications

  • Hardware:
    • LAN Interface: Giga x 2
    • PoE: 802.3at (in) / 802.3af (out)
    • Antenna: 2 x External, Gain: 2dBi (2.4GHz), 2dBi (5GHz)
    • Power: DC: 12V / 2.5A
    • Power Consumption: 12W (Excludes PoE-Out)
    • Mounting: Wall / Desktop
    • WPS / Reset: Yes
    • LED Indicators: Power LED, Diag LED
    • Operating Temperature: 0°C to 50°C (32°F to 122°F)
    • Operating Humidity: 90% or Less
    • Power Saving: 802.3az
    • Internal Buzzer: Yes
    • Security Cover: Yes (Optional)
  • Wireless:
    • Standard: 802.11 a/b/g/n/ac Concurrent Dual-Band
    • No. of Radios: 2
    • Receiver Sensitivity: -94.5dBm
    • Certification: CE / FCC
    • Fast Roaming: Yes
    • Number of SSIDs: 16 (2.4GHz) + 16 (5GHz)
  • Performance:
    • Maximum Data Speed: 300 + 867Mbps
    • Concurrent Clients: Up to 50 Per Radio
  • Security:
    • Encryption: WEP / WPA / WPA2
    • Wireless L2 Isolation: Yes
    • Station Isolation: Yes
    • IEEE 802.1x Authenticator: Yes
    • EAP Authentication: EAP-FAST / EAP-SIM / EAP-AKA
    • Hidden SSID: Yes
    • MAC Address Filter: Yes
    • Rogue AP Detection: Yes (with Edimax Pro NMS)
  • Management:
    • Deployment: Standalone / Managed by Edimax Pro NMS
    • Configuration: HTTP / HTTPS, SNMP v1, v2c, v3, CLI (Telnet, SSH)
    • RADIUS Server: Built-In
    • Auto-Channel: Yes
    • Private MIB: Yes
  • Dimensions and Weight:
    • Item Dimensions: 14 x 9.5 x 3.25 inches
    • Weight: 3.15 lb
  • Warranty: Limited Lifetime

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Edimax
  • WAP1200
  • 649659025110
  • New
  • 1.16 lbs
  • 7 X 2 X 7
  • Feb 19, 2026
  • Dec 23, 2016
Product Identifiers: Brand: Edimax • Part #: WAP1200 • UPC: 649659025110

Edimax WAP1200 AC1200 Dual-Band Wall Mount PoE Access Point
