Technical Specifications
IEI SYSTEM AFL-07A-N270/R/1G-R20 7INCH TOUCH PANEL ATOM N270 DDR2♈X400 RETAIL
FEATURES ? 7? widescreen WVGA LED Backlight TFT LCD with resistive touch screen
? 18V~30V wide range DC power input (Optional for LX platform)
? Compact design with plastic housing
? Fanless cooling system
? Selectable AT/ATX power mode
? System memory up to 2 GB SDRAM
? Built-in 802.11b/g/n Wireless LAN
? Built-in Bluetooth module
? Built-in two 1.5 W speakers
? One compactFlash? slot
? IP64 compliant front panel
? IEI One Key Recovery solution allows you to create rapid OS backup and recovery (Suggest over 4GB storage capacity) -------------------------
VENDOR: IEI Technology Corp
MPN: AFL-07A-N270/R/1G-R20
UPC: 885291002915
DETAIL SPECIFICATIONS
LCD SIZE :7"
MAX RESOLUTION :800 x 480
BRIGHTNESS (CD/) :350
CONTRAST RATIO :400:1
LCD COLOR :262K
PIXEL PITCH (MM) :0.0635(H) x 0.1905(V)
VIEWING ANGLE (H-V) :140/100
BACKLIGHT MTBF :50000 hrs

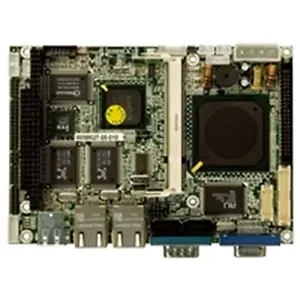

SBC MODEL :AFLMB-945GSE-N270-R10
CPU :Intel Atom processor N270 1.6GHz CPU
CHIPSET :Intel 945GSE + ICH7M
RAM :Supports one 400MHz or 533MHz DDRII SO-DIMM (2GB Max.)
I/O PORTS AND SWITCHES :[ x RS-232 COM Port[ x RS-232/422/485 COM port\ x RJ-45 for Giga LAN\ x USB 2.0[ x Power Switch[ x Reset Button[ x Power Jack[ x External SATA[ x Audio Jack (Line-out)
SSD :CF TypeII
WATCHDOG TIMER :Software Programmable supports 1255 sec. Syetem Reset
AUDIO :AMP 1.5W + 1.5W (internal speaker)
WIRELESS :[ x Wireless Lan 802.11 b/g/n Module (internal PCIe mini card interface) [ x Bluetooth Function (internal USB interface, Bluetooth V2.0)
CONSTRUCTION FRONT PANEL :ABS + PC Plastic front frame
HDD DRIVE BAY :N/A
OPTIONAL GPRS MODULE (SUPPORT GSM 850, EGSM900, DCS 1800 AND PCS,) :N/A
MOUNTING :Panel, Wall, Rack, Stand or Arm mounting VESA 75 x 75mm
LED FUNCTION :1 x LED on Front Panel for Power ON/OFF
FRONT PANEL COLOR :Gray 7539U
EMC :CE / FCC / CB / CCC
IP LEVEL(FRONT PANEL) :Front Frame IP64
TOUCH SCREEN :Resistive Type 4-Wire (Touch controller IC is on board)
POWER ADAPTER : P/N: 63000-FSP036RAB608-RSΨW Power Adapter Input: 90VAC264VAC, 50/60Hz Output: 12VDC
POWER REQUIREMENT :12VDC
POWER CONSUMPTION :23W
DIMENSION (L"XW"XH"): 12 x 7 x 8.5
WEIGHT: 5.0 lb
WARRANTY INFORMATION 1 Year
