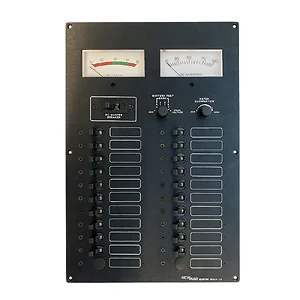

Newmar Elite DC Power Control Panel
The Newmar Elite DC Power Control Panel is designed for maximum DC circuit management, allowing seamless integration with an optional ES-2 panel for comprehensive AC-DC control and monitoring. With user-friendly features and robust capacity, it is ideal for various applications.
Key Features:
The Newmar Elite DC Power Control Panel, part number VK-ES-1, is an electrical panel designed for managing direct current (DC) circuits. It is configured for 12-volt systems, with a 24-volt option available, and supports up to 22 branch circuits, with 20 pre-installed. This panel includes a backlit analog DC volt and ammeter with adjustable dimming, along with a built-in battery bank test switch capable of monitoring up to four batteries. The DC master breaker is standard at 100 Amp, with customizable options for 50 or 75 Amp. Available circuit ratings include 3-5A, 5-10A, 6-15A, or 6-20A, which are also customizable. This unit is suitable for IT environments requiring robust DC circuit management and can integrate with an optional ES-2 panel for combined AC-DC control.
The DC master breaker is available as a 100 Amp standard, with customizable options for 50 Amp or 75 Amp to suit specific power requirements.
The Newmar Elite DC Power Control Panel supports up to 22 branch circuits, with 20 circuits pre-installed. Circuit ratings are customizable.
Yes, the panel includes a built-in battery bank test switch designed to test and monitor up to four separate batteries or battery banks.
The panel is configured for standard 12-volt systems, with an option available for 24-volt configurations to accommodate different power setups.
VK-ES-1 - Newmar Power Newmar Elite DC Power Control Panel
