VK-BLK-4 - Viking Electronics LED Strobe Light Kit with | Aztek Computers
29+Years
SKU: HEQGKIGCOF |  Mfg. Part: VK-BLK-4  | UPC: 615687225280  |
 1 Reviews  |     Share

VK-BLK-4 - Viking Electronics LED Strobe Light Kit with Steady-On Feature Compatible with any Emergency Telephone will n

5 Available
Condition: New

$231.13  $312.03
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

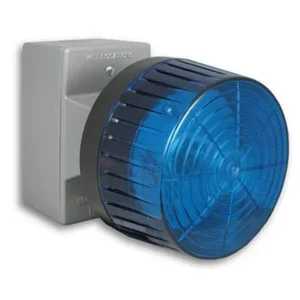

LED Strobe Light Kit

Expert Overview

The Viking Electronics VK-BLK-4 is an LED Strobe Light Kit designed to provide visual signaling for emergency telephones and other communication systems. This kit addresses the need for clear indication in environments where audible alerts may be insufficient or inappropriate, such as loud industrial settings, quiet areas requiring visual-only alerts, or for individuals with hearing impairments. It can signal a ringing phone, an off-hook condition, or a combination of both, and can also be triggered by a contact closure from security or alarm panels. The unit features a durable polycarbonate lens, high-output LED technology, and four programmable flash patterns with six brightness settings. It is suitable for emergency illumination in various locations, including elevators, campuses, hallways, and parking ramps. The strobe and control module can be installed separately, offering flexible deployment options with either flush or surface mounting using the included weatherproof single gang box.

Technical Specifications

- Ringing Phone or TTY indication for the hearing impaired
- Ringing phone indication in loud warehouses and factories
- Emergency illumination for emergency phones in elevators, campuses, hallways, parking ramps, etc.
- Alarm indication for security systems or alarm panels with phone dialers
- Durable polycarbonate lens
- High output long life LED technology
- Four programmable flash patterns: - Single Flash - Double Flash - Quad Flash - Flicker Flash
- 6 programmable beacon and strobe brightness settings
- Immune to shock and vibration
- Flush mount or surface mount with weatherproof single gang box (included)
- 3/4 knockouts for connecting conduit, etc.
- Strobe and control module may be installed separately
- Can be configured to signal: ringing, off-hook, a combination of both ringing and off-hook (line in-use), or triggered from a contact closure
- One set of (NO) normally open and (NC) normally closed relay contacts provided
- Selectable ring cadence mode (strobe light will remain flashing between rings)
- Switched 12V DC output (follows relay activation for powering strobe lights, cameras, etc.)
- On/off switches for ring detection and off-hook/loop detection
- Disable input, ideal for use with two-button emergency phones like Vikings E-1600-20A (DOD# 215), will not activate strobe light on Info calls
- Power: 120V AC to 12V DC adapter provided
- Maximum Power Supply Run Length on CAT-5: 1 pair = 125 ft, 2 pair = 225 ft, 3 pair = 325 ft, 4 pair = 475 ft
- Maximum SL-2 Wire Run Length on CAT-5: 3 wires = 100 ft, 6 wires = 300 ft
- Strobe Dimensions: 111mm diameter x 69mm (4.38" x 2.75")
- Control Module Dimensions: 74mm x 53mm x 25mm (2.9" x 2.1" x 1.0)
- Shipping Weight: 1.5 kg (3.3 lbs)
- Operating Temperature: -26 to 54C (-15 to 130 F)
- Relay Contact Rating: .5A @ 125V AC/1A @ 30V DC
- Minimum Loop Current: 15 mA
- Minimum Ring Voltage: 25V RMS
- Ringer Equivalence: 0.5 A REN
- Disable/Info Switch Input: 50mA/80mW maximum
- Humidity - BLK-4: 5% to 95% non-condensing
- Mounting: Fasten to wall, post, etc. with complete surface mounting hardware included
- Connections: Color coded wires with gel-filled butt connectors

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Viking Electronics
  • VK-BLK-4
  • B00DMTXBYI
  • 615687225280
  • New
  • 3.31 lbs
  • 8 X 5 X 8
  • Jul 21, 2026
  • Oct 29, 2021
Product Identifiers: Brand: Viking Electronics • Part #: VK-BLK-4 • UPC: 615687225280 • ASIN: B00DMTXBYI • Category: Welding Helmets

Frequently Asked Questions

What types of events can this strobe light signal?

The strobe light can be configured to signal a ringing phone, an off-hook condition, or a combination of both (line in-use). It can also be triggered by a contact closure from security systems or alarm panels with phone dialers.

What is included in the VK-BLK-4 kit?

The kit includes the LED strobe light, a control module, a 120V AC to 12V DC adapter, a weatherproof single gang box for surface mounting, and complete surface mounting hardware. Color-coded wires with gel-filled butt connectors are also provided for connections.

Can this strobe light be used in outdoor or industrial environments?

Yes, the strobe light features a durable polycarbonate lens and is immune to shock and vibration. It can operate in temperatures from -26 to 54 degrees Celsius (-15 to 130 degrees Fahrenheit) and includes a weatherproof single gang box for surface mounting, making it suitable for various environments.

What are the power requirements for this device?

The device is powered by a 120V AC to 12V DC adapter, which is provided with the kit. It has a minimum loop current of 15 mA and a minimum ring voltage of 25V RMS.
