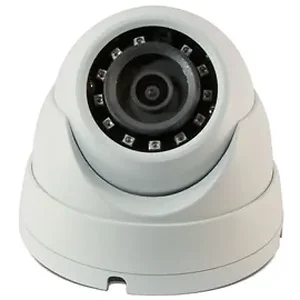

VIPD1420SE-28 - Vonnic Camera VIPD1420SE-28 Full HD 2.8MM IP67 4MP H.264+ and H.264 NETWORK EYEBALL DOME Camera Retail

Camera
Image Sensor: 1/3 inch 4Megapixel progressive scan CMOS
Effective Pixels: 2688(H) x 1520(V)
Scanning System: Progressive
Electronic Shutter Speed: Auto/Manual, 1/3(4)s to 1/100000s
Min. Illumination: 0. 1Lux/F2.0(Color), 0Lux/F2.0(IR on)
S/N Ratio: More than 50dB
Video Output: N/A Camera Features
Max. IR LEDs Length: 30m (100FT)
Day/Night: Auto(ICR)/Color/B/W
Backlight Compensation: BLC / HLC / DWDR
White Balance: Auto/Manual
Gain Control: Auto/Manual
Noise Reduction: 3D
Privacy Masking: Up to 4 areas Lens
Focal Length: 2.8mm
Max Aperture: F2.0(F2.0)
Focus Control: Manual
Angle of View: H: 106^o (84^o)
Lens Type: Fixed lens
Mount Type: Board-in Type Video
Compression: H.264+/ H.264
Resolution: 4M(2688 x 1520)/3M(2304 x 1296)/1080P(1920 x 1080)/720P(1280 x 720)/ D1(704 x 576/704 x 480) /CIF(352 x 288/352 x 240)
Frame Rate Main Stream: 4M(1 to 20fps)/3M(1 to 25/30fps)
Sub Stream: D1(1 to 25/30fps)
Bit Rate: H.264: 32kbps to 8192kbps
Corridor Mode: Support Audio
Compression: N/A
Interface: N/A Network
Ethernet: RJ-45 (10/100Base-T)
Wi-Fi: N/A
Protocol: IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS
Compatibility: ONVIF, CGI
Max. User Access: 20 users
Smart Phone: iPhone, iPad, Android, Windows Phone Auxiliary Interface
Memory Slot: N/A
RS485: N/A
Alarm: N/A
PIR Sensor Range: N/A General
Power Supply: DC12V, PoE (802.3af)
Power Consumption: <4.3W(IR on)
Working Environment: -30^oC to +60^oC, Less than 95% RH
Ingress Protection: IP67
Vandal Resistance: N/A Item Dimension ( L inch x W inch x H inch)
6 x 6 x 5 Weight
2.00 lb Warranty Information
2 Years
