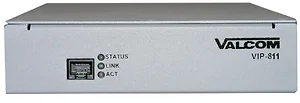

Valcom VIP-811A Enhanced Ethernet Network Station Port for IP Communication

The Valcom Enhanced Ethernet Network Station Port is designed to facilitate seamless communication over IP-based LAN/WAN networks. Equipped with a single FXS port, it enables one telephone to engage in both paging and direct phone-to-phone communications.

This station port features:

• Two programmable form C relay closures
• Caller ID capabilities
• No server requirement for operation
• Supports dial plans from 1 to 11 digits
• User-friendly Windows-based setup
• AUX audio input for additional functionalities
• Contact closures available for audio indication, door unlocking, and ringing indications

Protocols supported include DHCP, IGMP v3, UDP, TCP, HTTP, Telnet, and FTP. Voice algorithm utilized is G.711 (64kbits/s) with echo suppression. It operates on a voltage of 24 Vdc at 250 mA and is IEEE 802.3af compatible, classified as a class 3 device with compliance to FCC Part 15 Class A regulations.

Specifications for the station port include:

• 4 REN, CID enabled
• Two form-C relay contacts supporting 24 Vdc and 2 amps

Please note this product does not include a power supply. For power supply options, refer to model VC-VIP-324.
