Product Description :

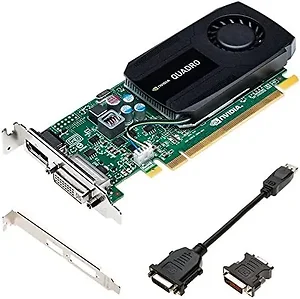

The NVIDIA Quadro K420 delivers power-efficient 3D application performance and capability. 1 GB of DDR3 GPU memory with fast bandwidth enables you to create complex 3D models, and a flexible single-slot and low-profile form factor makes it compatible with even the most space and power-constrained chassis. Plus, an all-new display engine drives up to four displays with Display Port 1.2 support for ultra-high resolutions like 3840 x 2160 at 60 Hz with 30-bit color.
About this item :
- DisplayPort 1.2 connector
- DisplayPort with audio
- DVI-I dual-link connector
- VGA support
- HTC Support
- Nvidia Mosaic
- Form Factor: low-profile
- Simultaneously drive up to two directly connected displays, each with the full capabilities of the display
- Support up to four displays when using Display Port 1.2 multi-streaming
- Scalable geometry architecture
- Dual Display Port 1.2 outputs including Multi-Stream and HBR2 support (capable of supporting resolutions such as 3840 x 2160)
- Display Port 1.2 (up to 3840 x 2160 at 60Hz and 2560 x 1600 at 120Hz)
- DVI-I Dual-Link output (up to 2560 x 1600 at 60Hz and 1920 x 1200 at 120Hz)
- OpenGL and Direct3D quad buffered stereo support
Specifications :
-
Mfr Part Number: VCQK420-PB
- Chipset: NVIDIA Quadro K420
- Video Memory: 1GB DDR3
- Memory Interface: 128-bit
- Memory Bandwidth: 29.0 GB/s
- Bus: PCI-Express 2.0 x16
- CUDA Cores: 192
- RAMDAC: 400 MHz
- Max. Resolution: 3840 x 2160, Support 4x Display Monitors (w/ DisplayPort Multi-Stream)
- Connectors: DVI-D Dual Link, DisplayPort
- Thermal: Fansink
- Dimensions (LxH): 6.300 x 2.713 inch
- This Video Card Supports:
- Microsoft Windows 8.1/ 8/ 7/ Vista/ XP SP3/ Linux/ Solaris
- NVIDIA CUDA Architecture
- NVIDIA Unified Driver Architecture (UDA)
- NVIDIA SMX Technology
- NVIDIA TXAA Technology
- NVIDIA FXAA Technology
- NVIDIA 3D Vision and 3D Vision Pro Technology
- NVIDIA NVIEW Multi-display Technology
- NVIDIA Quadro Mosaic Technology
- NVIDIA Multi-GPU Technology
- HDCP - High-bandwidth Digital Content Protection
- Microsoft DirectX 11, Shader Model 5.0 and OpenGL 4.4
- 41W Maximum Power Consumption
- Low Profile Design
