Special Order
Ships in 1-2 weeks
Condition: New
- 3 Zone One-Way Page Control
- Provides Tandem All Call
- Background Music Input, Automatically Mutes In Zonebeing Paged
- Page Override For Special Priority Announcements
- Features Are Programmable Per Zone
- Built-In Tone Generator For Night Ringing, Time Clock Tone, Doorbell
- Accepts Pulse And Tone Dial
- Battery Back-Up Input
- Ul Listed
- To Interface With Analog Extension Or Centrexline Add The Vc-V-9970
- Access: Page Port On Selected Telephone Systems, Pbx Loop Start Or Ground-Start Trunk Port, Electronic Or 1A2 Line Key (Line Card Required), Or Dedicated Single Line Phoneset
- Input Impedance: 600 Ohm
- Music Sourceimpedance: 4 To 600 Ohm
- Music Input Level: -10Dbm Nominal
- Dc Output: -24 Vdc @ 500 Ma
- Power Requirements: 230 Vac/.5A Or 120 Vac/1A
- Weight: 6.25Lbs
- Dimensions: 7.1H X 10W X 3D
- Valcom Power Units (+20)

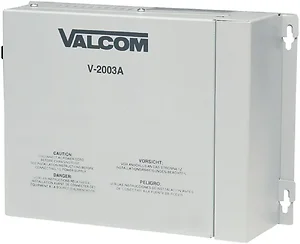

The VALCOM V-2003A is a 3-zone one-way page control unit designed for business environments requiring localized or facility-wide announcements. This system provides a dedicated solution for managing public address functions, including background music distribution that automatically mutes in the zone being paged. It supports tandem all-call capabilities and offers programmable features per zone, allowing for tailored communication strategies. The unit integrates a built-in tone generator for night ringing, time clock tones, and doorbell functions, enhancing its utility for operational alerts. It accepts both pulse and tone dial inputs and includes a battery back-up input for continued operation during power interruptions. Access methods include telephone system page ports, PBX trunk ports, electronic or 1A2 line keys (with a line card), or dedicated single-line phonesets. This system is suitable for organizations needing a reliable, centralized paging solution.
The VALCOM V-2003A requires either 230 VAC at 0.5A or 120 VAC at 1A for operation. It also includes a battery back-up input for power redundancy.
The unit includes a background music input with an impedance of 4 to 600 Ohm and a nominal input level of -10dBm. When a page is initiated, the background music automatically mutes in the zone being paged.
The product is described as the VALCOM VC-V-2003A Page Control - 3 Zone 1Way White Box. Additional Valcom Power Units (+20) are mentioned, but it is not specified if they are included or sold separately.
Yes, to interface with an analog extension or Centrex line, the VC-V-9970 must be added. The unit natively accepts access via page ports on selected telephone systems, PBX loop start or ground-start trunk ports, electronic or 1A2 line keys (with a line card), or dedicated single-line phonesets.
V-2003A - Valcom ONE-WAY, 3 ZONE, PAGE CONTROL WITH ALL CALL AND BUILT-IN POWER; PROVIDES BACKGRO
