Technical Specifications

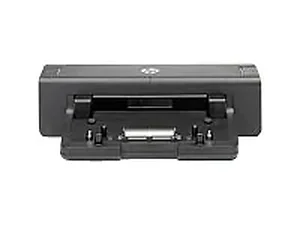

230W DOCKING STATION
HP docking solutions include a range of convenient expansion solutions that easily connect to your HP Business Notebook. Create an ideal desktop computing environment using comfort-focused docking stations and stands that provide port replication and cable management, as well as enable future expandability.
*
MAIN SPECIFICATIONS
Product Description HP 230W Docking Station - docking station
Device Type Docking station
Dimensions (WxDxH) 10.7 in x 10.2 in x 2.6 in
Weight 3.5 lbs
Localization English / United States
Power AC 120/230 V ( 50/60 Hz )
Manufacturer Warranty 1 year warranty
General
Device Type Docking station
Width 10.7 in
Depth 10.2 in
Height 2.6 in
Weight 3.5 lbs
Localization English / United States
Expansion / Connectivity
Interfaces] x Hi-Speed USB - 4 pin USB Type A 1 x PoweredUSB 2.0 1 x monitor stand port 1 x parallel - IEEE 1284 (EPP/ECP) - 25 pin D-Sub (DB-25) 1 x display / video - DVI-Digital - 24 pin digital DVI 1 x network - RJ-45 1 x display / video - DisplayPort - 20 pin DisplayPort 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) 1 x serial - RS-232 - 9 pin D-Sub (DB-9) 1 x audio - line-in - mini-phone 3.5 mm 1 x headphones - output - mini-phone stereo 3.5 mm 1 x mouse - generic - 6 pin mini-DIN (PS/2 style) 1 x keyboard - generic - 6 pin mini-DIN (PS/2 style)
Miscellaneous
Features Security lock slot (cable lock sold separately)
Power
Power Device Power adapter - internal
Voltage Required AC 120/230 V ( 50/60 Hz )
Manufacturer Warranty
Service & Support 1 year warranty
Service & Support Details Limited warranty - 1 year
Environmental Parameters
Min Operating Temperature 50 °F
Max Operating Temperature 95 °F
