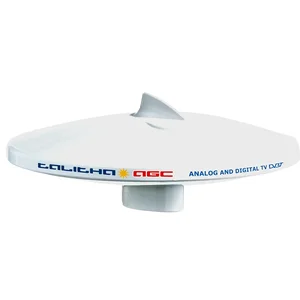

Glomex Marine Antennas V9125AGC/AB Glomex 10" Automatic Gain Control TV Antenna

10" Automatic Gain Control TV Antenna

The Glomex 10" antenna features an innovative Automatic Gain Control (AGC) amplifier, ensuring optimal television reception without manual adjustments. As soon as you power on your TV, the AGC automatically adjusts the gain based on the signal strength, providing you with the best possible viewing experience.

This compact antenna is designed for easy installation and can be discreetly placed aboard your boat for enhanced aesthetic appeal. With a wide reception range and durable materials, it's perfect for marine environments.

Specifications:

• ANTENNA DIAMETER: 10"
• ANTENNA HEIGHT: 5.9"
• BASE DIAMETER: 16"
• ANTENNA WEIGHT: 14.29 oz
• RADOME MATERIAL: U.V. resistant ASA
• ANGLE OF RECEPTION: 360°
• POLARIZATION: Horizontal/Vertical
• IMPEDANCE: 75 ohms
• FREQUENCY RANGE: 40/890 MHz
• GAIN AVERAGE: 26 dB
• NOISE FACTOR: 2.2 dB
• POWER CONSUMPTION: 20 mA
• POWER SUPPLY: 12/24 Vdc
• AUTOMATIC GAIN: Yes
• TV SET MAX: 2
• TERMINATION: F female
• CONNECTOR SUPPLIED: F male gold plated connector (V9144)

Supplied Accessories:

• 50023/14 AUTOMATIC GAIN CONTROL AMPLIFIER
• 66" COAXIAL CABLE to connect the antenna to the amplifier
• 5" SET CORD to connect the amplifier to the TV
• V9144 F-MALE GOLD PLATED CONNECTORS (2 PCS)
