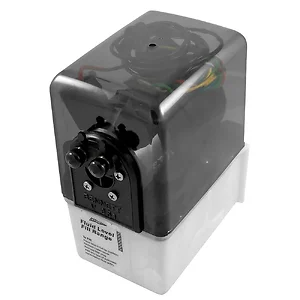

V351HPU1D - Bennett Marine Hydraulic Power Unit 12V w/ Deutsch Connector (OEM)

Hydraulic Power Unit 12V with Deutch Connector

A compact powerhouse that creates hydraulic pressure to lower and raise the trim tabs. It employs two solenoid valves to direct the flow of fluid to the actuators. The solenoid valves lock tightly to secure the tabs in place. Strength to lower and hold even the largest tabs in place. The Lexan cover provides water resistance to the electrohydraulic unit, and the translucent reservoir allows fluid check at a glance.

The mounting bracket is sold separately (# H1179). HPU measures 4″ x 7 1/2″ x 5 1/2″. Uses automatic transmission fluid. Includes pump, solenoid valves, reservoir, and cover.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Bennett Marine Hydraulic Power Unit 12V w/ Deutsch Connector (OEM), part number V351HPU1D, is a compact electrohydraulic unit designed for controlling trim tabs. It operates on 12V power and generates hydraulic pressure to facilitate the lowering and raising of trim tabs. The unit incorporates two solenoid valves, which direct fluid flow to the actuators and lock tightly to maintain tab position. Its design provides sufficient strength to hold even large trim tabs in place. A Lexan cover offers water resistance, and the translucent reservoir allows for quick fluid level checks. This HPU measures 4? x 7 1/2? x 5 1/2? and is compatible with standard automatic transmission fluid. It is suitable for marine OEM applications requiring reliable trim tab actuation.
