SKU: RPMI6RO26B |  Mfg. Part: USG20W-VPN  | UPC: 760559123659  |
 3 Reviews  |     Share

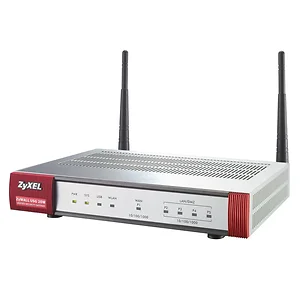

USG20W-VPN - Zyxel Network USG20W-VPN Next Generation Unified Security Gateway VPN Firewall Wireless Retail

Special Order
Ships in 1-2 weeks
Condition: New

$270.34  $364.96
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

Safer, more reliable VPN connections Faster processors today have vastly boosted the capabilities of attackers to decrypt VPN tunnels. Legacy VPN cryptographic algorithms like Message Digest 5 (MD5) and Secure Hash Algorithm 1 (SHA-1) are no longer sufficient to guarantee secure outbound communications. With supports to the more advanced Secure Hash Algorithm 2 (SHA-2), the VPN Firewall provides the safest VPN connections in its class to ensure maximum security for business communications. The complete range of Zyxel VPN Firewalls deliver reliable, non-stop VPN services with dual-WAN failover and fallback support. With two WAN connections?one primary and one for redundancy?the Zyxel VPN Firewall automatically switches to the backup connection should the primary link fail, and automatically switches back to the primary connection once it is back online.

Technical Specifications

Hardware Specifications
10/100/1000 Mbps RJ-45 Ports: 1 x WAN, 1 x SFP, 4 x LAN/DMZ
USB Ports: 1
Console Port: Yes (RJ-45) System Capacity and Performance
SPI Firewall Throughput: 350 Mbps
VPN Throughput: 90 Mbps
Max TCP Concurrent Session: 20,000
Max Concurrent IPSec VPN Tunnels: 10
Max Concurrent SSL VPN Users: 15
Included SSL VPN User No. 5
Customizable Zones: Yes
IPv6 Support: Yes Wireless Specifications
Standard Compliance: IEEE 802.11 ac/n compliance
Standard Compliance: IEEE 802.11 ac/n Compliance
Radio: 1
SSID Number: 8
Maximum Transmit Power:
- US (FCC) 2.4 GHz: 25 dBm, 3 antennas
- US (FCC) 5 GHz: 25 dBm, 3 antennas
- EU (ETSI) 2.4 GHz: 20 dBm (EIRP), 3 antennas
- EU (ETSI) 5 GHz: 20 dBm (EIRP), 3 antennas
No of Antenna: 3 Detachable Antennas
Antenna Gain: 2 dBi at 2.4GHz, 3 dBi at 5GHz
Data Rate:
- 802.11n UP to 450 Mbps
- 820.11ac UP to 1300 Mbps
Receive Sensitivity:
2.4GHz:
- 11 Mbps -87 dBm
- 54 Mbps -74 dBm
- HT20, MCS15 -71 dBm
- HT40, MCS15 -67 dBm
5 GHz:
- 54 Mbps -74 dBm
- HT20, MCS23 -71 dBm
- HT40, MCS23 -68 dBm
- VHT20, MCS8 -66 dBm
- VHT40, MCS9 -62 dBm
- VHT80, MCS9 -59 dBm Key Software Features
Firewall: Yes
Virtual Private Network (VPN): Yes (IPSec, SSL, L2TP Over IPSec)
Anti-Spam: Subscription Based
Content Filtering (CF): Subscription Based
Bandwidth Management: Yes
Logging and Monitoring: Yes
Unified Security Policy: Yes
System Management: Yes Power Requirement
Power Input: 12V DC, 2.0A Max
Max Power Consumption: 18.0W
Heat Dissipation: 61.38 BTU/hr Accessories
Power Adapter
RJ45 - RS232 Cable for Console Connection
Antenna Environmental Specifications
Operating:
- Temperature: 0 C to 40 C (32 F to 104 F)
- Humidity: 10% to 90% (Non-Condensing)
Storage:
- Temperature: -30 C to 70 C (-22 F to 158 F)
Humidity: 10% to 90% (Non-Condensing)
MTBF: 44,000.00hr Certifications
EMC: FCC Part 15 (Class B), IC, CE, EMC (Class B), RCM, BSMI

Safety
BSMI, UL Item Dimension (L"xW"xH")
9 x 6 x 1

Weight
2.50 lb

Warranty Information
1 Year

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • TAA Compliant:
  • ZYXEL
  • USG20W-VPN
  • B01E1DSIMI
  • 760559123659
  • New
  • 3.35 lbs
  • 8 X 4 X 11
  • May 30, 2026
  • Feb 29, 2020
  • Yes
Product Identifiers: Brand: Zyxel • Part #: USG20W-VPN • UPC: 760559123659 • ASIN: B01E1DSIMI • Category: Firewall & VPN • TAA Compliant

USG20W-VPN - Zyxel Network USG20W-VPN Next Generation Unified Security Gateway VPN Firewall Wireless Retail
