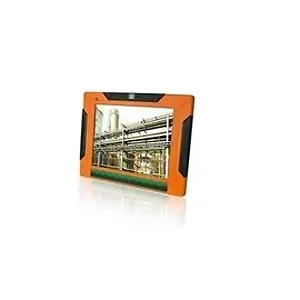

Iei Technology UPC-V315-QM77-I3/R/2G-R20 IEI System UPC-V315-QM77-i3/R/2G-R20 15inch Core i3-3217UE QM77 2GB DDR3 Fanles

LCD Size
15" Brightness(cd/m2)
400 Max Resolution
1024(W) x 768(H) Contrast Ratio
700 : 1 Backlight MTBF(hrs)
50000 CPU
Intel Celeron 1047UE processor Chipset
Mobile Intel QM77 Express Chipset HDD
1 x 2.5" SATA SSD bay SSD
mSATA (SATA2 signal) RAM
Buitl-in one 2 GB DDR3 memory (system max. 8GB: on board max. 4GB, socket max. 4GB) I/O Ports and Switches
3 x RS-232 (RJ-45), 1 x RS-422/485 (RJ-45), 1 x CAN-bus, 1 x VGA, 1 x HDMI port, 2 x GbE LAN, 2 x USB 2.0, 2 x USB 3.0, 1 x Reset button, 1 x Audio jack (Line out, MIC) Power adapter
90 W
Requirement Power 1: 9V-36V(+/-0.3V)
Power 2: 10.5V-36V(+/-0.3V) Operating Temperature
-10^oC - 50^oC Humidity
10% to 95% (non-condensing) Storage Temperature
-20^oC - 60^oC Expansion Slots
1 x PCIe Mini card LCD Color
16.2M Touch Screen
5-wire resistive type with RS-232 interface Touch Controller
DMC 9000 System Cooling
Fanless
