Technical Specifications
Hardware
Industry Standards:IEEE 802.3at, 802.3af, 802.3, 802.3u, 802.3ab, 802.3z, 802.3x
Ports:6 Regulatory Approvals:EMI: EN61000-6-4 Emission for industrial environment
EMS:
EN61000-6-2 Immunity for Industrial environment EN61000-4-2 (ESD) Level 3,Criteria B EN61000-4-3 (RS) Level 3,Criteria A EN61000-4-4 (EFT) Level 3,Criteria A EN61000-4-5 (Surge) Level 3,Criteria B EN61000-4-6 (CS) Level 3,Criteria A EN61000-4-8 (Magnetic Field) Level 3, Criteria A
Safety: UL60950-1
Rail Traffic: EN 50121-4
Shock IEC: 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6 Connector(s)
Connector Type(s):
1 - Terminal Block (6 Wire) Female
6 - RJ-45 Female
Performance
Auto MDIX:Yes
Compatible Networks:10/100/1000 Mbps
Full Duplex Support:Yes
Maximum Cable Length:328 ft 100 m
Maximum Data Transfer Rate:2 Gbps (Full-Duplex)
MTBF:296, 517 Hours
Switching Architecture:Store-and-Forward Color
Black
Enclosure Type
Steel
Indicators
LED Indicators:
2 - Power
6 - 100 / 1000 Mbps
6 - Link / Act
4 - PoE
1 - Fault Power
Input Voltage:20 57 DC
Power Adapter Included:Terminal Block
Power Consumption:143 W Max (120 W for PoE)
Included in Package

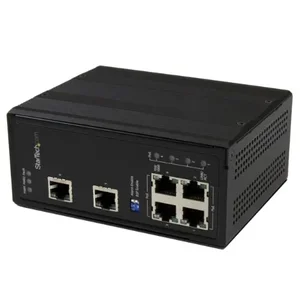

1 - 6 Port Gigabit Switch
1 - Terminal Block
1 - Wall Mount Bracket w/ Screws
1 - DIN Rail Bracket w/ Screws
1 - Instruction Manual Item Dimension (L"xW"xH"):
9.25 x 7.28 x 2.95
Weight:
2.48 lb
Warranty Information:
2 Year Warranty
