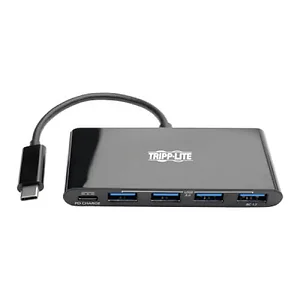

Product Overview
This USB-C hub with PD Charging expands the potential of your tablet, laptop, Chromebook, MacBook, smartphone or PC?s USB-C or Thunderbolt 3 port. It?s ideal for adding a thumb drive and other USB peripherals or powering and charging a PD Charging-compliant mobile device?all at the same time.
Technical Specifications
Technology
USB (all versions), USB 3.0 (SuperSpeed), USB 3.1 (Gen 1) INPUT
Bus Powered
Yes PHYSICAL
Unit Packaging Type
Box
Material of Construction
ABS, PVC
Color
Black
Cable Jacket Rating
VW-1 ENVIRONMENTAL
Operating Temperature Range
32 to 113 F (0 to 45 C)
Storage Temperature Range
14 to 158 F (-10 to 70 C)
Relative Humidity
10% to 90% RH, Non-Condensing
BTUs
7.5 BTU/Hr
Power Consumption (Watts)
2.2
Power Provided to Connected Device(s)
Up to 20V 3A (60W) Input (USB-C), 5V 1.5A (7.5W) Output BC 1.2 USB port, 5V 0.9A (4.5W) Output per USB port CONNECTIONS
Ports
5
Side A - Connector 1
USB C (MALE)
Side B - Connector 1
(4) USB 3.0 A (FEMALE)
Side B - Connector 2
USB C (FEMALE)
Connector Plating
Nickel FEATURES and SPECIFICATIONS
USB Specification
USB 3.0 (up to 5 Gbps) USB 3.1 Gen 1 (up to 5 Gbps)
Driver Required
No
UASP Support
No
USB Power Delivery (PD) Charging Support
Yes CERTIFICATIONS
Certifications
Tested to CE, FCC, RoHS, REACH Item Dimension (L inchxW inchxH inch)
1 x 4 x 6
Weight
1.00lb
Warranty Information
3-year limited warranty
