Technical Specifications
System Requirements
Source device with USB-C or Thunderbolt 3 port that supports USB DisplayPort Alternate Mode
Display device with DVI input (DVI port) Package Includes

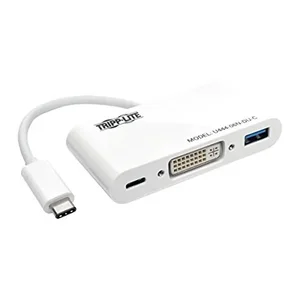

U444-06N-DU-C USB 3.1 Gen 1 USB-C to DVI Adapter
Owners manual Technology
USB (all versions) USB 3.1 (Gen 1) DVI (all types) Input
Bus Powered: Yes
Product Length (in.): 6.00 Physical
Material of Construction: PVC and ABS
Color: White
Cable Jacket Rating: VW-1 Environmental
Operating Temperature Range: 32 to 113 F (0 to 45 C)
Storage Temperature Range: 14 to 158 F (-10 to 70 C)
BTUs: 4.1 BTU/Hr
Power Consumption (Watts): 1.2
Operating Humidity Range: 10% to 85% RH, Non-Condensing
Storage Humidity Range: 5% to 90% RH, Non-Condensing
Power Provided to Connected Device(s): 5V 0.9A (4.5W) Output (USB-A), Up to 20V 3A (60W) Input (USB-C) Connections
Ports: 3
Side A - Connector 1: USB C (MALE)
Side B - Connector 1: DVI-I DUAL-LINK (FEMALE) (WIRED TO DVI-D SINGLE-LINK)
Side B - Connector 2: USB 3.0 A (FEMALE)
Side B - Connector 3: USB C (FEMALE)
Connector Plating: Nickel Features and Specifications
Max Supported Video Resolution: 1920 x 1080 (1080p) at 60Hz
HDCP Specification: 1.3
USB Specification: USB 3.0 (up to 5 Gbps) USB 3.1 Gen 1 (up to 5 Gbps)
Driver Required: No
USB Power Delivery (PD) Charging Support: Yes Certifications
Certifications: Tested to CE, FCC, RoHS, REACH Item Dimension (L"xW"xH")
6 x 5 x 1
Weight
1 lb
Warranty Information
3 Year limited warranty
