SKU: A0ACGXUD7F |  Mfg. Part: U442DOCK12S  | UPC: 037332213389  |  0 Reviews  |     Share

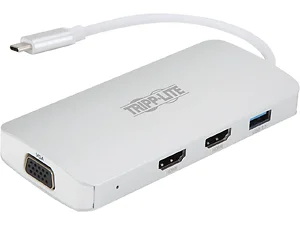

U442DOCK12S - Tripp Lite USB C Docking Station w/ USB-A Hub, 2x HDMI, VGA, PD Charging 1080p @ 60 Hz, Silver USB Type C,

Special Order
Ships in 1-2 weeks
Condition: New

$48.41  $65.35
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

The U442-DOCK12-S expands the potential of your tablet, laptop, Chromebook, MacBook, smartphone or PC’s USB-C or Thunderbolt 3 port. It’s ideal for transmitting digital audio and video to a large display, adding a thumb drive or other USB peripheral, powering and charging a PD Charging-compliant mobile device and more—all at the same time. With a source device that also supports USB DisplayPort Alt Mode, you can extend video from your primary display to another, duplicate the same video on both displays, or change the second display to your primary. The two HDMI and single VGA ports support HD video resolutions up to 1920 x 1200 (including 1080p) at 60 Hz. Up to three monitors can be connected at the same time, with the same image being displayed on all three. You can either mirror the source display or extend it, but the three monitors connected to the ports on the dock will all be the same. A DVI display may also be connected using an HDMI to DVI adapter (adapters sold separately).

Technical Specifications

OVERVIEW
Technology:
HDMI (All types)
USB (all versions)
USB 3.1 (Gen 1)
VGA/SVGA
INPUT
Bus Powered:Yes
Product Length (ft.):1
USER INTERFACE, ALERTS and CONTROLS
LED Indicators:White (Power) PHYSICAL
Unit Packaging Type:Box
Material of Construction:Aluminium
Color: Silver,White
Cable Jacket Rating:VW-1
ENVIRONMENTAL
Operating Temperature Range:32 to 131 oF (0 to 55 oC)
Storage Temperature Range:14 to 158 oF (-10 to 70 oC)
Relative Humidity:5% to 95% RH, Non-Condensing
BTUs: 2.9 BTU/Hr
Power Consumption (Watts):0.85
Power Provided to Connected Device(s):5V 0.9A (4.5W) Output (USB A), Up to 20V 3A (60W) Input (USB C)
CONNECTIONS
Ports: 5
Side A - Connector 1: (1) USB C (MALE)
Side B - Connector 1:
HD15 (FEMALE)
HDMI (FEMALE)
USB 3.0 A (FEMALE)
USB C (FEMALE)
Connector Plating:Nickel
FEATURES and SPECIFICATIONS
Max Supported Video Resolution:
HDMI: 1920 x 1080 (1080P) at 60Hz
VGA: 1080p at 30Hz
HDMI Specification: 1.4
HDCP Specification: 1.3
USB Specification:
USB 3.0 Gen 1 (up to 5 Gbps)
USB 3.1 Gen 1 (up to 5 Gbps)
Driver Required:No
USB Power Delivery (PD) Charging Support:Yes
Full Duplex Support:Yes
CERTIFICATIONS
Certifications:
Tested to CE
FCC
RoHS
REACH Item Dimension (L"xW"xH")
1 x 6 x 4
Weigt
1.00 LB

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • TAA Compliant:
  • Country of Origin:
  • Tripp Lite
  • U442DOCK12S
  • B07B412ZNZ
  • 037332213389
  • New
  • 3.2 lbs
  • 7 X 5 X 5
  • Apr 04, 2026
  • Dec 24, 2021
  • Yes
  • CN
Product Identifiers: Brand: Tripp Lite • Part #: U442DOCK12S • UPC: 037332213389 • ASIN: B07B412ZNZ • Category: USB Cables • TAA Compliant

U442DOCK12S - Tripp Lite USB C Docking Station w/ USB-A Hub, 2x HDMI, VGA, PD Charging 1080p @ 60 Hz, Silver USB Type C,
