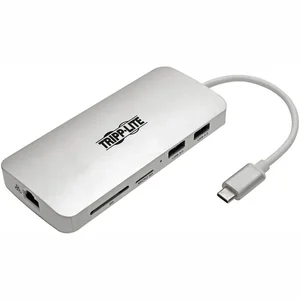

Tripp Lite U442-DOCK11-S USB C Docking Station 4k w/USB Hub HDMI SD/Micro SD Gbe Charging

OVERVIEW
Technology:
HDMI (All types)
USB (all versions)
USB 3.0 (SuperSpeed)
USB 3.1 (Gen 1)
INPUT
Voltage Compatibility (VAC):
100
110
120
127
200
208
220
230
240
Bus Powered:Yes
Product Length (ft.):1
USER INTERFACE, ALERTS and CONTROLS
LED Indicators:White (Power), Green (Link), Yellow (Activity)
PHYSICAL
Unit Packaging Type:Box
Material of Construction:Aluminium
Color: Silver,White
Cable Jacket Rating:VW-1
ENVIRONMENTAL
Operating Temperature Range:32 to 131 ^oF (0 to 55 ^oC)
Storage Temperature Range:14 to 158 ^oF (-10 to 70 ^oC)
Relative Humidity:5% to 95% RH, Non-Condensing
BTUs: 15.7 BTU/Hr
Power Consumption (Watts):4.6
Power Provided to Connected Device(s):5V 0.9A (4.5W) Output (USB A), Up to 20V 3A (60W) Input (USB C)
COMMUNICATIONS
Network Speed:1Gbps
IEEE Standards Supported:802.3
CONNECTIONS
Ports: 7
Side A - Connector 1: (1) USB C (MALE)
Side B - Connector 1:HDMI (FEMALE)
Side B - Connector 2: (2) USB 3.0 A (FEMALE)
Side B - Connector 3:MICRO SD (FEMALE)
Side B - Connector 4:SD (FEMALE)
Side B - Connector 5:USB C (FEMALE)
Connector Plating:Nickel
FEATURES and SPECIFICATIONS
Max Supported Video Resolution:4K x 2K (3840 x 2160) at 30Hz
HDMI Specification: 1.4
HDCP Specification:2.2
USB Specification:
USB 3.0 Gen 1 (up to 5 Gbps)
USB 3.1 Gen 1 (up to 5 Gbps)
Driver Required:No
Recommended Category Cable:Cat5 / 5e / 6 Cables
USB Power Delivery (PD) Charging Support:Yes
Auto MDIX Support:Yes
Full Duplex Support:Yes
Suspend Mode Support:Yes
Remote Wakeup Support:Yes
CERTIFICATIONS
Certifications:
Tested to CE
FCC
RoHS
REACH Item Dimension (L"xW"xH")
1 x 6 x 4
Weigt
1.00 LB
Warranty Information
3-year limited warranty
