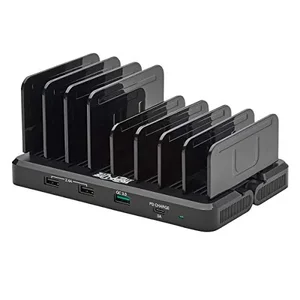

Tripp Lite U280-008-CQC-ST USB CHARGING STATION SMART 8PT USB-A QUI

OVERVIEW
Over Current Protection
Yes OUTPUT
Charging Ports / Amps
(1) 1.5A (6) 2.4A (1) 3A
Overload Protection
Yes
Charging Method
USB INPUT
Voltage Compatibility (VAC)
100 110 120 125 127 200 208 220 230 240
External Power Supply Input Specs (V / Hz / A)
100-240V, 50/60Hz, 3.0A Max
External Power Supply Output Specs (V / A)
20V / 6A
External Power Supply Cord Length (ft.)
3
External Power Supply Cord Length (m.)
1
External Power Supply Plug(s)
NEMA 5-15P North America
External Power Supply Certifications
CCC CE GS RoHS TUV cUL
Bus Powered
No BATTERY
Battery Charging (1.2 Port)
Yes VOLTAGE REGULATION
Overvoltage Correction
Yes USER INTERFACE, ALERTS AND CONTROLS
LED Indicators
Green (Static) is Powered Green (Flickering) is Overcurrent Protection, Attention required CHARGING
Overcharge Protection
Yes
Total Charging Amps
6 PHYSICAL
Color
Black
Material of Construction
Plastic ENVIRONMENTAL
Operating Temperature Range
41^oF to 95^oF (5^oC to 35^oC)
Storage Temperature Range
-4^oF to 122^oF (-20^oC to 50^oC)
Relative Humidity
20% - 80% CONNECTIONS
Number of Charging Ports
8
Ports
8
Side A - Connector 1
NEMA 5-15P
Side B - Connector 1
(7) USB A (FEMALE)
Side B - Connector 2
(1) USB Type-C (FEMALE) FEATURES AND SPECIFICATIONS
USB Hub Ports
Yes
Number of USB Hub Ports
8
Driver Required
No
USB Power Delivery (PD) Charging Support
Yes
Quick Charge Compliant
3.0
Technology
USB
USB Power Delivery (PD) Charging Specification
2.0 CERTIFICATIONS
Certifications
Tested to RoHS, REACH, FCC Item Dimension (L"xW"xH")
6 x 10 x 4

Weight
2.12 lbs

Warranty Information
3-year limited warranty
