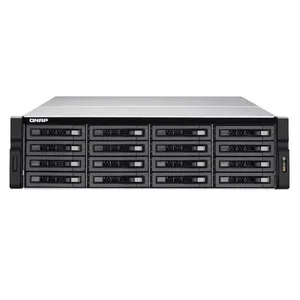

TVSEC1680USASRP16GR2 - Qnap TVS-EC1680U-SAS-RP-16G-R2-US Intel Xeon E3-1245 v3/E3-1246 v3 3.4GHz/3.5GHz/ 16GB RAM/ 6GbE/

CPU
Intel Xeon E3-1246 v3 Family 3.5 GHz Quad-core Processor Memory
Total memory slots: 4
System memory: 16 GB DDR3 non-ECC RAM
Memory module pre-installed: 8 GB x2
Memory expandable up to: 32 GB (8GB x4) Flash Memory
512MB DOM Internal Cache Port
Two mSATA port on board for read caching. The standard system is shipped with two 128GB mSATA flash. Hard Drive
16 x 3.5-inch SAS 12Gbps, SAS/SATA 6Gbps/3Gbps hard drive or 2.5-inch SAS/SATA SSD hard drive Hard Drive Tray
16 x hot-swappable and lockable tray LAN Port
Built-in 2 x 10 GbE SFP+ ports (LAN-10G2SF-MLX) and 4 x GbE ports 40GbE is optional LED Indicators
10 GbE, Status, LAN, Storage expansion port status USB
4x USB 3.0 port (rear)
4x USB 2.0 port (rear)
Support USB printer, pen drive, USB hub, and USB UPS etc. Buttons
System: Power button and reset button Alarm Buzzer
System warning Form Factor
3U, Rackmount Sound Level (dB)
Sound Level (dB) Sound pressure (LpAm) (bystander position): 35.5 dB (with 16 x HITACHI HUS724020ALA640 hard drive installed) Power Consumption (W)
Sleep mode: 82.4
In Operation: 166.58 W
(with 16 x HITACHI HUS724020ALA640 hard drive installed) Power Supply
Redundant power: Input 90264VAC 650W x 2 PCIe Slot
2 (Right slot: 1 PCIe Gen3 x8 Left slot: 1 PCIe Gen3 x4) Fan
4 x 8 cm smart cooling fan Item Dimension (L inchxW inchxH inch)
30 x 24 x 15

Weight
53.20 lb

Warranty Information
5 Years
