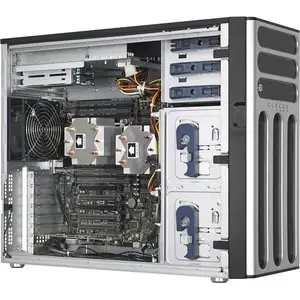

TS700-E8-RS8 V2 - Asus SERVER BAREBONE, 2 X SOCKET R3, INTEL XEON E5-2600 V4 / E5-2600

Processor / System Bus
2 x Socket R3 (LGA 2011-3)
Intel Xeon processor E5-2600 v4 product family (145W)
Intel Xeon processor E5-2600 v3 product family(145W)
QPI 6.4 / 8.0 / 9.6 GT/s Generation
E8 Core Logic
Intel C612 PCH Memory
Total Slots : 16 (4-channel per CPU, 8 DIMM per CPU)
Capacity : Maximum up to 1024GB LRDIMM
Memory Type :DDR4 2400 /2133 /1866/1600 RDIMM
DDR4 2400 /2133 /1866/1600 LRDIMM
Memory Size :
32GB, 16GB, 8GB, 4GB RDIMM
64GB, 32GB LRDIMM Expansion Slots
Total slot:6
4 x PCI-E x16 (Gen3 x16 link), FH, FL
1 x PCI-E x16 (Gen3 x8 link), FH, FL
1 x PCI-E x16 (Gen3 x8 link), FH, HL Storage
SATA Controller :
Intel C612
10 x SATA3 6Gb/s ports or 9 x SATA3 6Gb/s ports + 1 x M.2 connector
Intel Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
(Support Software RAID 0, 1, 5, 10 )
SAS Controller :
ASUS PIKE II 3008 8-port SAS HBA card(Optional) HDD Bays
8 x 3.5inch Hot-swap Storage Bays
1 x M.2 (NGFF 22110/2280/2260) Auxiliary Storage FDD/CD/DVD
3 x 5.25inch media bays
(Options: No Device / DVD-RW) Networking
2 x Intel I210AT + 1 x Mgmt LAN Graphic
Aspeed AST2400 with 32MB VRAM Multi-GPU Support
Support ATI CrossFireX technology, up to Quad CrossFireX
Supports NVIDIA 2-Way Geforce SLI technology Multi-GPU Support
Support ATI CrossFireX technology, up to Quad CrossFireX
Supports NVIDIA 2-Way Geforce SLI technology Rear I/O Ports
2 x RJ-45 ports
1 x RJ-45 Mgmt LAN port
4 x USB 3.0 ports
4 x USB 2.0 ports
1 x PS/2 KB/MS port
1 x Q-Code/Port 80 LED
1 x S/PDIF Out (Optical)
1 x BIOS flashback button w/ LED
1 x Set of Audio ports (6 Ports)
1 x VGA port OS Support
Windows Server 2012 R2
Windows Server 2012
Windows Server 2008 R2
RedHat Enterprise Linux
SuSE Linux Enterprise Server
CentOS
Ubuntu
VMware
Citrix XenServer Management Solution
ASWM Enterprise
On-Board ASMB8-iKVM for KVM-over-Internet Regulatory Compliance
BSMI, CE, C-Tick, FCC(Class B) Form Factor
5U/Tower Power Supply
1+1 Redundant 800W 80PLUS Gold Power Supply
Rating: 100-127Vac/200-240Vac,9.9A/4.79A ,47-63Hz, Class I Environment
Operation temperature: 10^oC - 35^oC
Non operation temperature: -40^oC - 70^oC
Non operation humidity: 20% - 90% ( Non condensing) Chassis
T50 5U Pedestal Chassis (13SV0007AM0201)
