Use as a common negative/neutral bus for AC or DC systems. Dual terminal strips in 4 or 8 screw positions on 3/4? centers are secured to a high density insulated base. All hardware, bus material and fasteners are nickel-plated brass.
#8 screws accommodate various size ring terminals and each terminal strip is rated for 100 amps.

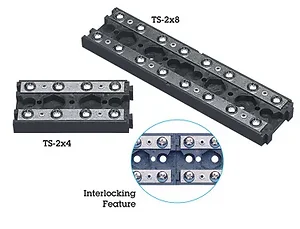

Interlocking bases allow use of multiple terminal strips and bus bars (described below) to produce secure and neat wiring assemblies. The terminal strip bases have provisions for either #8 or #10 mounting screws, and no conductive parts in the base are exposed to the mounting surface.
Model
Total # of Base Terminals
Size
TS-2x4
8
3 1/16? x 1 1/2?
TS-2x8
16
6 1/16" x 1 1/2"
Product Details
Manufacturer:
Model Number:
Condition:
Weight:
Dimensions:
Updated:
Added:
Newmar Power
TS-2X4
New
5 lbs
5 X 5 X 5
Feb 19, 2026
Dec 30, 2025
Product Identifiers:
Brand: Newmar Power •
Part #: TS-2X4
