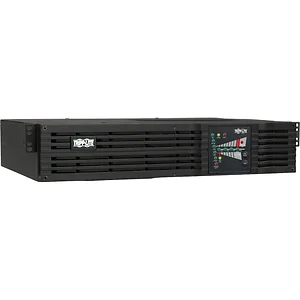

Product Overview
General InformationTripp Lite Smart Online UPS systems offer high performance power protection ideal for critical server and network equipment in datacenters, computer rooms and network closets. Online, double-conversion Uninterruptible Power Supply (UPS) maintains perfectly regulated output power by continuously converting raw AC input to DC, then re-converting output back to AC. Fully regulated sine wave AC output with +/-2% voltage regulation powers network equipment continuously, even during severe brownouts and overvoltages, all without depleting UPS battery reserves. Maintains battery-derived AC output during power failures with zero transfer time. Extended runtime options available. Highly efficient operation in optional economy mode saves BTU heat output and energy costs. Network management interfaces support communications via USB port, DB9 serial port and pre-installed WEBCARDLX network management interface card. The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. Built-in DB9 port offers both enhanced RS-232 data and basic contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. PowerAlert UPS monitoring software is available via free download. Emergency Power Off (EPO) interface. LED display reports UPS operating mode, line power availability, battery mode operation, inverter operation and output power availability. Audible alarm with push-button momentary alarm-cancel. Programmable self-test. Fault-tolerant auto-bypass mode. Field-replaceable, hot-swappable internal batteries and external battery packs.Technical InformationPlug/Connector Type: NEMA 5-20PReceptacles: 6 x NEMA 5-15/20RReceptacles: 1 x NEMA L5-20RDataline Protection: RJ-11Dataline Protection: RJ-45Protection Type: Over VoltageProtection Type: Under VoltageProtection Type: EMI / RFIProtection Type: BrownoutBypass Switch: AutomaticEmergency Power OFF: YesCord Length: 10 ftPower DescriptionLoad Capacity: 2200 VA/1600 WInput Voltage: 120 V ACOutput Voltage: 120 V ACInput Current: 16 AWaveform Type: Sine WaveWaveform Type: Pure Sine WaveSurge Energy Rating: 570 JCircuit Breaker: YesManagementNetwork Management: SNMP ManageableAlarm: UPS StartUpAlarm: Power FailureAlarm: Low BatteryAlarm: OverloadAlarm: UPS FaultAlarm: Remote ShutdownControls/IndicatorsStatus Indicators: 14 LEDs indicate line power, online mode, economy/bypass mode, on-battery, overload, battery low, replace battery and fault status information4-LED meter displays load and battery charge levelsLED panel rotates for viewing in rack/tower formatsInterfaces/PortsSerial Port: YesUSB: YesTotal Number of Expansion Slots: 1Battery InformationBackup/Run Time (Full Load): 4.50 MinuteBackup/Run Time (Half Load): 14 MinuteTypical Battery Recharge Time: 6 HourHot Swappable: Yes
Technical Specifications
OUTPUT
Output Volt Amp Capacity (VA)
2200
Output kVA Capacity (kVA)
2.2
Output Watt Capacity (Watts)
1600
Output kW Capacity (kW)
1.6
Output Capacity Details
OVERLOAD CAPACITY: Supports inverter operation up to 105% load continuously, 125% load for 3 minutes 150% load for 30 seconds and >150% load for 0.5 seconds before switching to BYPASS (when bypass input voltage and frequency are WITHIN bypass limits) or SHUTDOWN (when bypass input voltage or frequency are OUTSIDE bypass limits)
Power Factor
0.7
Crest Factor
3:1
Nominal Output Voltage(s) Supported
110V 120V
Nominal Voltage Details
120V default
Frequency Compatibility
50 / 60 Hz
Frequency Compatibility Details
Output frequency matches input nominal on startup, defaults to 60 Hz on cold-start
Output Voltage Regulation (Line Mode)
+/- 2%
Output Voltage Regulation (Economy Line Mode)
+/- 10%
Output Voltage Regulation (Battery Mode)
+/- 2%
Output Receptacles
(6) 5-15/20R (1) L5-20R
Load Management Receptacles
Two switchable three-outlet 5-15/20R load banks
Output AC Waveform (AC Mode)
Sine wave
Output AC Waveform (Battery Mode)
Pure Sine wave
Individually Controllable Load Banks
Yes INPUT
Rated input current (Maximum Load)
16A
Nominal Input Voltage(s) Supported
110V AC 120V AC
UPS Input Connection Type
5-20P
Input Circuit Breakers
30A
UPS Input Cord Length (ft.)
10
UPS Input Cord Length Details
Built-in
Recommended Electrical Service
20A 120V
Input Phase
Single-Phase BATTERY
Full Load Runtime (min.)
4.5 min. (1600w)
Half Load Runtime (min.)
14 min. (800w)
Expandable Battery Runtime
Extended runtime supported via optional external battery packs
External Battery Pack Compatibility
BP48V24-2U (limit 1) BP48V60RT-3U (multi-pack compatible) BP48V27-2US (multi-pack compatible)
Expandable Runtime Description
BP48V24-2U (limit 2 w/ 48VDCSPLITTER)
DC System Voltage (VDC)
48
Battery Recharge Rate (Included Batteries)
Less than 6 hours from 10% to 80% (typical, full load discharge)
Internal UPS Replacement Battery Cartridge
RBC94-2U
Battery Access
Front panel battery access door
Battery Replacement Description
Hot-swappable, user replaceable sealed, flame retardant, non-spillable batteries
Expandable Runtime
Yes VOLTAGE REGULATION
Voltage Regulation Description
Online, double-conversion power conditioning
Overvoltage Correction
2% output voltage regulation during overvoltages to 150
Undervoltage Correction
2% output voltage regulation during undervoltages to 80
Severe Undervoltage Correction
2% output voltage regulation during undervoltages to 65 (under 70% load only) USER INTERFACE, ALERTS AND CONTROLS
Switches
2 switches control off/on power status and alarm-cancel/self-test operation
Alarm Cancel Operation
Power-fail alarm can be silenced using alarm-cancel switch
Audible Alarm
Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
LED Indicators
14 LEDs indicate line power, online mode, economy/bypass mode, on-battery, overload, battery low, replace battery and fault status information 4-LED meter displays load and battery charge levels LED panel rotates for viewing in rack/tower formats SURGE / NOISE SUPPRESSION
UPS AC Suppression Joule Rating
570
UPS AC Suppression Response Time
Instantaneous
UPS Dataline Suppression
1 line TEL/DSL (1 in / 1 out) 10/100Base T Ethernet
EMI / RFI AC Noise Suppression
Yes PHYSICAL
Included Mounting Accessory Description
Includes 4 post rackmount installation accessories
Installation Form Factors Supported with Optional Accessories
2 post rackmount (2POSTRMKITWM) Wallmount (2POSTRMKITWM) Tower (2-9USTAND)
Primary Form Factor
Rackmount
Rack Height
2U
Minimum Required Rack Depth without External Battery Pack (cm)
61
Minimum Required Rack Depth with External Battery Pack (cm)
66
Minimum Required Rack Depth without External Battery Pack (in.)
24
Minimum Required Rack Depth with External Battery Pack (in.)
26
Cooling Method
Fan
UPS Housing Material
Steel
Primary UPS Height (mm)
89
Primary UPS Width (mm)
445
Primary UPS Depth (mm)
483 ENVIRONMENTAL
Operating Temperature Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Storage Temperature Range
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Relative Humidity
0 to 95%, non-condensing
AC Mode BTU / Hr. (Full Load)
816
AC Economy Mode BTU / Hr. (Full Load)
349
Battery Mode BTU / Hr. (Full Load)
889
AC Economy Mode Efficiency Rating (100% Load)
94%
Audible Noise
< 45dB at 1m COMMUNICATIONS
Communications Interface
Contact closure DB9 Serial EPO (emergency power off) Pre-installed network card Slot for SNMP/Web interface USB (HID enabled)
Network Monitoring Port Description
Includes pre-installed WEBCARDLX network interface DB9 port supports RS232 and contact closure communications Economy-mode setting option is available using PowerAlert software and DB9 Serial cable connection OR installed Network Management Card
PowerAlert Software
For local monitoring via the UPSs built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
Communications Cable
USB and DB9 cabling included
WatchDog Compatibility
Supports Watchdog application, OS and hard-reboot restart options for remote applications LINE / BATTERY TRANSFER
Transfer Time
No transfer time (0 ms.) in online, double-conversion mode
Low Voltage Transfer to Battery Power (Setpoint)
80V (100% load), 65V ( <70% load)
High Voltage Transfer to Battery Power (Setpoint)
150 SPECIAL FEATURES
Cold Start (Startup in Battery Mode During a Power Failure)
Cold-start operation supported
High Availability UPS Features
Automatic inverter bypass Hot swappable batteries
Green Energy-Saving Features
High efficiency economy mode operation Individually controllable load banks Schedulable daily hours of economy mode operation CERTIFICATIONS
UPS Certifications Tested to UL1778 (USA) Tested to CSA (Canada) Tested to NOM (Mexico) Meets FCC Part 15 Category A (EMI) Item Dimension (L"xW"xH")
10 x 21 x 24
Weight
63.21 lbs
Warranty Information
2 year limited warranty
