Product Overview
Physical CharacteristicsColor: BlackHeight: 78.5"Width: 23.6"Depth: 43"Rack Height: 42URack Width: 19"MiscellaneousPackage Contents: SmartRack SR42UB 42U Standard Enclosure with Doors and Side Panels - Shock PalletAdditional Information: SmartRack Enclosures are 100% compatible with all serversShips fully assembledTextured powder coat finishMassive front to rear ventilation capacityCasters and levelersRoll through 7 foot doorwaysOpen bottom for cable accessTop cable access openingsCompatibility with air management accessoriesLoad Capacity: 3000 lbsWarrantyLimited Warranty: 5 Year
Technical Specifications

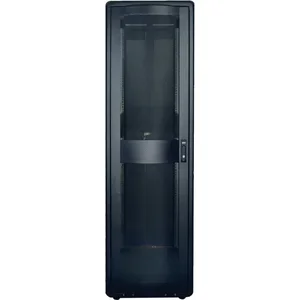

- This special version of Tripp Lite’s 42U SmartRack Enclosure (SR42UB) ships mounted on a “shock pallet” that features additional reinforcement and shock-absorbing material for safe loading and re-shipping - Heavy-duty ramps (included) allow enclosure to be rolled on and off the pallet during configuration - Shipping Capacity: shock-pallet supports up to 1,250 lbs. (300 lbs. SmartRack Enclosure weight + up to 950 lbs. of additional equipment), enabling safe loading and re-shipping - Final Installation Capacity: SmartRack Enclosure supports up to 2,500 lbs. of equipment after final installation - 4 interior vertical posts with unthreaded square hole openings - Textured powder coat finish - Massive front to rear ventilation capacity - Maximum usable internal depth of 37 inches / 94 cm (front to rear rail) - Locking, reversible and removable front door - Locking, removeable split rear doors - Casters and levelers - Roll through 7 foot doorways - Open bottom for cable access - Top cable access openings - Compatibility with air management accessories PHYSICAL - Unit Dimensions (in): EXTERNAL DIMENSIONS: 81 x 24 x 42 (HWD), Max front to rear rail internal dimension = 37 inches - Unit Dimensions (cm): EXTERNAL DIMENSIONS: 205.7 x 61 x 106.7 (HWD), Max front to rear rail internal dimension = 37 inches / 94 cm - Shipping Dimensions (HWD/in): 83 x 27 x 45 - Shipping Dimensions (HWD/cm): 211 x 68.6 x 114.3
