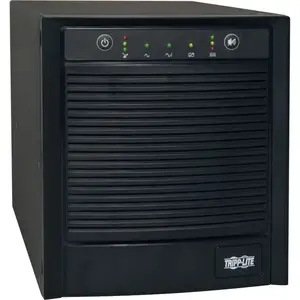

Eaton Tripplite TRPSMART2200SLT TRIPP LITE, SMARTPRO 120V 2.2KVA 1.6KW LINE-INTERACTIVE SINE WAVE UPS, TOWER, NETWORK CA

Output:
Output Volt Amp Capacity (VA): 2200
Output kVA Capacity (kVA): 2.2
Output Watt Capacity (Watts): 1600
Output kW Capacity (kW): 1.6
Power Factor: 0.7
Nominal Output Voltage(s) Supported: 120V
Frequency Compatibility: 60 Hz
Output Voltage Regulation (Line Model): -18% / +8%
Output Voltage Regulation (Battery Mode): +/-5%
Output Receptacles: (6) 5-15/20R, (1) L5-20R
Output AC Waveform (AC Mode): Sine Wave
Output AC Waveform (Battery Mode): Pure Sine Wave Input:
Rated Input Current (Maximum Load): 14.8A
Nominal Input Voltage(s) Supported: 120V AC
UPS Input Connection Type: 5-20P
Input Circuit Breakers: 20A
UPS Input Cord Length (ft): 10
Recommended Electrical Service: 20A 120V
Input Phase: Single Phase Battery:
Full Load Runtime (min): 5 min (1600W)
Half Load Runtime (min): 13 min (800W)
DC System Voltage (VDC): 48
Battery Recharge Rate (Included Batteries): Less than 4.5 hours from 10% to 90% (Typical, Full Load Discharge)
Internal UPS Replacement Battery Cartridge: RBC54
Battery Access: Battery Access Door
Battery Replacement Description: Hot-Swappable, User Replacement Batteries
Expandable Runtime: No Voltage Regulation:
Voltage Regulation Description: Automatic Voltage Regulation (AVR) maintains line power operation with an input voltage range of 83V to overvoltage of 145V
Overvoltage Correction: Input voltages between 127 and 145 are reduced by 12%
Undervoltage Correction: Input voltages between 96 and 108V are boosted by 12%
Severe Undervoltage Correction: Input voltages between 83 and 95V are reduced by 24% User Interface, Alerts and Controls:
Switches: 2 Switches control off/on power status and alarm-cancel/self-test operation
Alarm Cancel Operation: Power-fail alarm can be silenced using alarm-cancel switch
Audible Alarm: Audible alarm indicates power failure and overload conditions
LED Indicators: 9 LEDs indicate line power, battery power, AVR, overload and replace battery status - with a 3-LED level meter for load and battery charge level
Surge/Noise Suppression:
UPS AC Suppression Joule Rating: 570
UPS AC Suppression Response Time: Instantaneous
EMI/RFI AC Noise Suppression: Yes Physical:
Primary Form Factor: Tower
Cooling Method: Fan
UPS Housing Material: Steel Environmental
Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Storage Temperature Range: +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Relative Humidity: 0 to 95%, non-condensing
AC Mode BTU / HR. (Full Load): 286.3
Battery Mode BTU / HR. (Full Load): 885.6
AC Mode Efficiency Rating (100% Load): 95%
Audible Noise: Audible Noise <50 dBA at Front Side 1 Meter Communications:
Communications Interface: USB DB9 Serial EPO (emergency power off) Slot for SNMP/Web interface
Network Monitoring Port Description: Supports detailed monitoring of UPS and site power conditions
PowerAlert Software: Included
Communications Cable: USB and DB9 Cabling Included
WatchDog Compatibility: Supports Watchdog application, OS and hard-reboot restart options for remote applications Line/Battery Transfer
Transfer Time: 2-4 Milliseconds
Low Voltage Transfer to Battery Power (Setpoint): 83
High Voltage Transfer to Battery Power (Setpoint): 145 Special Features
Cold Start (Startup in Battery Mode During a Power Failure): Cold-Start Operation Supported
High Availability UPS Features: Hot Swappable Batteries
Green Energy Saving Features: Greater than 95% Efficiency, GREEN UPS Certifications
UPS Certifications: Tested to UL1778 (USA) Tested to CSA (Canada) Tested to NOM (Mexico) Meets FCC Part 15 Category A (EMI) Item Dimension (L"xW"xH")
15 x 14 x 18

Weight
57.00 lb

Warranty Information
2 Years
