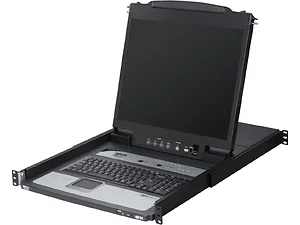

Control up to 8 computers with a single KVM switch with integrated console. This KVM switch is a smart solution for secure and centralized server control that saves rack space and money.
- UPC Code037332150776
- ConsoleYes
- Max CPU8
- TechnologyPS/2; VGA/SVGA
- VIDEO
- Max Supported Video Resolution1280 x 1024 @60Hz
- INPUT
- Nominal Input Voltage(s) Supported100V AC; 110V AC; 115V AC; 120V AC; 127V AC; 140V AC; 200V AC; 208V AC; 220V AC; 230V AC; 240V AC
- Input Frequency50/60Hz
- Input Current120V (0.8A) / 230V (0.4A)
- POWER
- Power Consumption (Watts)28.50
- Power Consumption Detail(28.5W at 120V, 60Hz) / (29.1W at 230V, 50Hz)
- PHYSICAL
- ColorBlack
- Cable Jacket ColorBlack
- Included Mounting Accessories: Yes
- LCD Monitor (in.): 19
- Shipping Dimensions (hwd / in.): 5.00 x 26.10 x 32.50
- Shipping Weight (lbs.): 43.00
- Unit Dimensions (hwd / in.): 1.750 x 19.000 x 27.000
- Unit Weight (lbs.): 30.6
- Storage Temperature Range: -4r to 140rF (-20r to 60rC)
- Relative Humidity: 0 to 80% RH, Non-condensing
- Operating Temperature: 32 Degrees F to 120 Degrees F (0 to 50 C)
- BTUs: 26.1 BTUs at 120Vac/ 27.2 BTUs at 220Vac
- Port Control: Push Buttons, Hotkeys, OSD
- IP Remote Access: No
- Number of Ports: 8
- Computer/Server Ports: (x8) HD18 (Female)
- Firmware Upgrade Port: RJ11
- PC/Server Connections: PS/2; USB; VGA
- Side A - Connector 1: (8) HD18 (FEMALE)
- Side B - Connector 1: (1) HD18 (MALE)
- Side B - Connector 2: (1) DB25 (MALE)
- Side B - Connector 3: (1) RJ11 (FEMALE)
- Side B - Connector 4: (2) USB A (FEMALE)
- USB Specification: USB 2.0 (up to 480 Mbps)
- NIAP-Certified Secure: No
- Number of Users: 1
- Autoscan (Y,N): Y
- Autoscan Duration: 1-255 Seconds
- Product Certifications: EN 60950-1; CAN/CSA C22.2; CAN/CSA-C22.2 No. 60950-1 (Canada); cUL Listed; UL 60950-1; UL Listed
- Product Compliance: RoHS; CE (Europe); FCC Part 15 Class A (USA); Trade Agreements Act (TAA)
- Product Warranty Period (Worldwide): 1-year limited warranty
