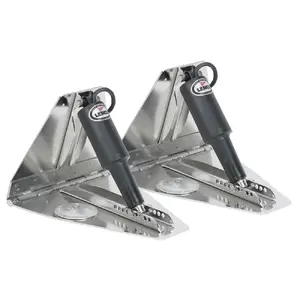

Lenco 15049-101 18" x 12" Trim Tab Kit - No Switch

18" x 12" High Performance Trim Tab Kit - No Switch

This high-performance trim tab kit by Lenco is designed for boats ranging from 20 to 40 feet in length. Engineered with electro-polished 7 Gauge 304 stainless steel blades and built to withstand the marine environment, this kit ensures durability and optimal performance.

It comes with single actuator functionality and includes extreme-duty actuators that are fully submersible. The package features all necessary components such as a full transom back plate, mechanical strain relief cable seal, adjustable mounting brackets, and sacrificial anodes for enhanced protection.

Kit Includes:

• Two stainless steel trim tab planes
• Two XD extreme duty actuators with 6' leads
• All assembly components including transom back plate and mounts

Note:

Customers need to supply boat mounting hardware and optional actuator extension harnesses as required.

Specifications:

• Suggested Boat Length: 20' to 40'
• Tab Dimensions: 18" x 12"
• Minimum Transom Height: 10.5"
• Material: 7 Gauge Stainless Steel
• Finish: Electro-Polished
• Switch Kit: Sold Separately
• Compliance: CE Certified
